High temperature insulation tubing&sleeving

ProductsHigh temperature insulation tubing&sleeving

Products

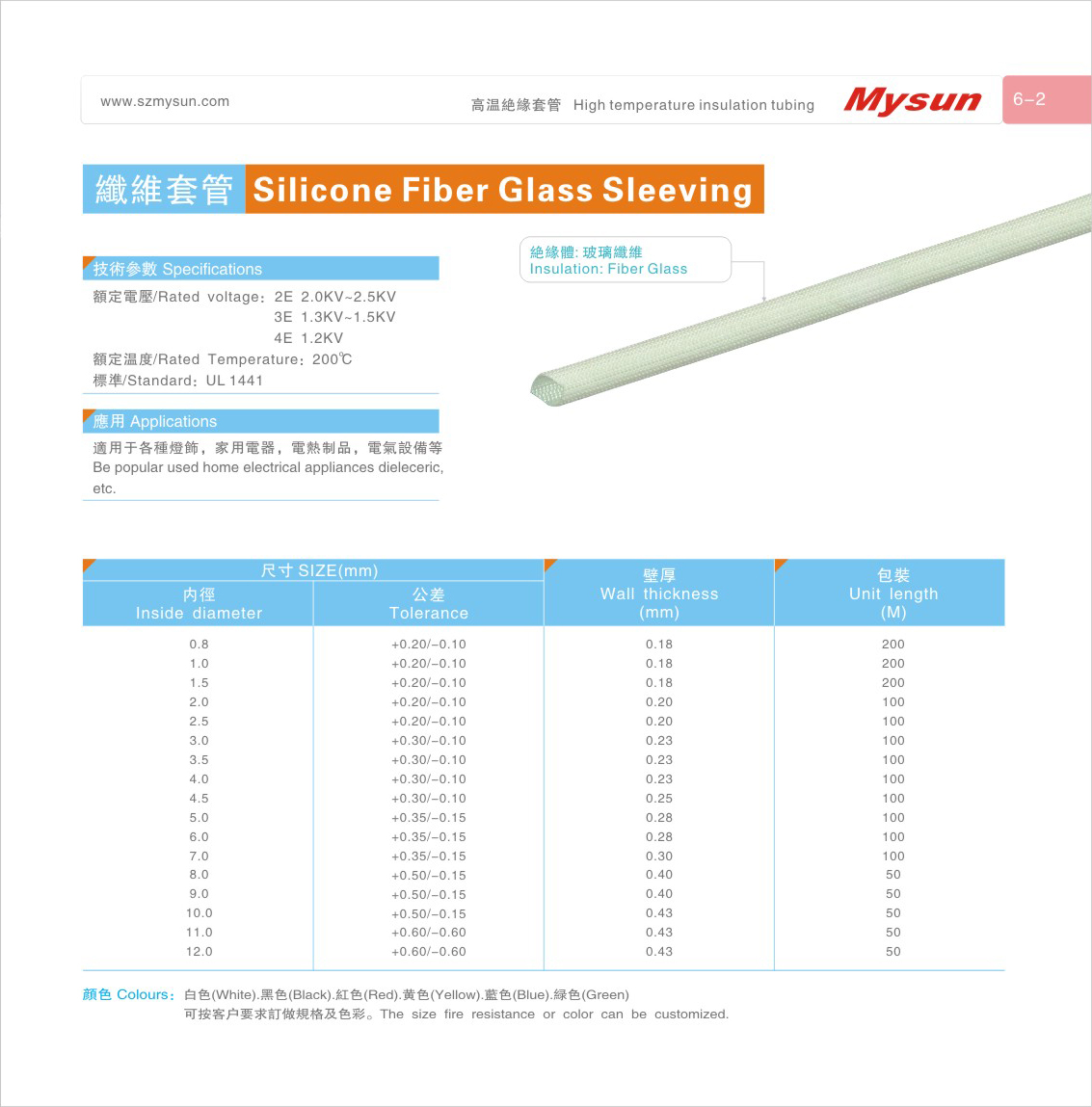

Silicone Fiber Glass Sleeving

Technical Parameter：

Rated voltage: 2E 2.0KV~2.5KV 3E1.3KV~1.5KV 4E 1.2KV
Rated Temperature: 200℃
Standard: UL758

Product Description

High temperature insulation tubing and sleeves are used to protect wires and connectors, featuring excellent heat resistance. They can maintain stable insulation performance even in high temperature environments, and possess resistance to abrasion, corrosion, and aging. Consequently, they are extensively used in scenarios such as protecting wires and connectors in automotive engine compartments, industrial equipment, and internal wiring of motors.

尺寸SIZE(mm)		壁厚 Wall thickness (mm)	包装 Unit length (M)
內徑 Inside diameter	公差 Tolerance	壁厚 Wall thickness (mm)	包装 Unit length (M)
0.8	+0.20/-0.10	0.18	200
1.0	+0.20/-0.10	0.18	200
1.5	+0.20/-0.10	0.18	200
2.0	+0.20/-0.10	0.20	100
2.5	+0.20/-0.10	0.20	100
3.0	+0,30/-0.10	0.23	100
3.5	+0.30/-0.10	0.23	100
4.0	+0.30/-0.10	0.23	100
4.5	+0.30/-0.10	0.25	100
5.0	+0.35/-0.15	0.28	100
6.0	+0.35/-0.15	0.28	100
7.0	+0.35/-0.15	0.30	100
8.0	+0.50/-0.15	0.40	50
9.0	+0.50/-0.15	0.40	50
10.0	+0.50/-0.15	0.43	50
11.0	+0.60/-0.60	0.43	50
12.0	+0.60/-0.60	0.43	50

FAQ

How soon can I expect delivery?

For products in stock, we ship immediately. Otherwise, production typically takes 7-10 working days.

What is your MOQ?

MOQs vary by product. For wires and cables ranging from 28AWG to 18AWG, it's 6100 meters. For 16AWG to 12AWG, it's 3050 meters. Beyond 10AWG, the MOQ is 1000 meters.

What are your available transportation methods?

We offer transportation by sea, land, and air.

What payment methods do you accept?

We accept various payment methods. Our recommendations are 100% T/T or PayPal before production, or a 70% T/T deposit with the remaining 30% balance due before shipment.

How do you handle quality issues?

In case of any quality concerns, we will promptly resend fully-qualified products to you.
