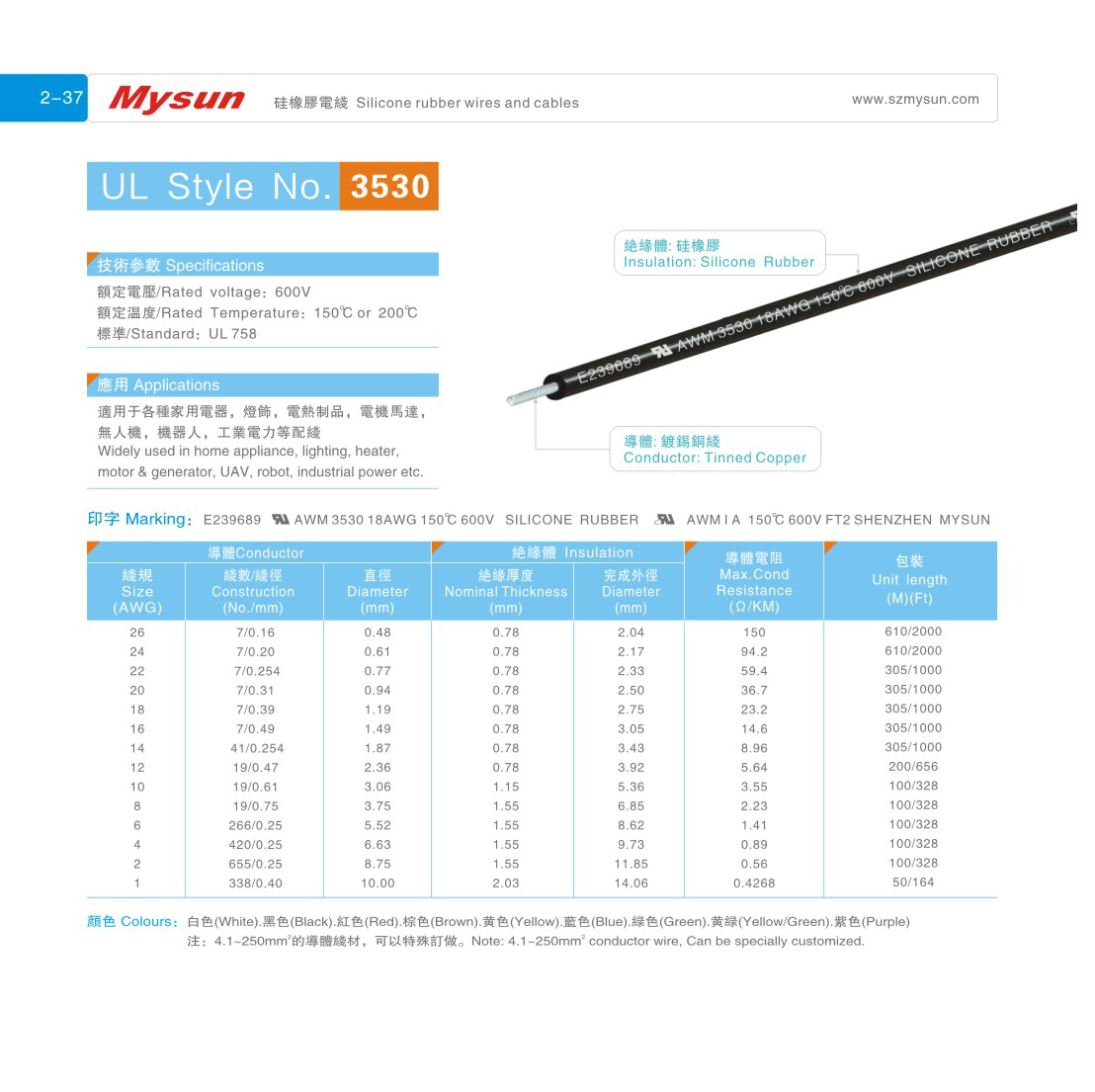

UL Style No.3530

Technical Parameter：

  • Rated voltage: 600V
  • Rated temperature: 150℃/200℃
  • Standard: UL758
Contact UsDownload
Product Description
Silicone wire is a type of wire that uses silicone as its insulation material. Its main feature is its excellent high temperature resistance, able to maintain stable performance in temperature ranges from -50°C to +200°C or even higher. Additionally, silicone wire possesses good resistance to chemical corrosion, able to withstand the corrosion of acids, alkalis, solvents, and other chemical substances. Its flexible and abrasion-resistant characteristics make it suitable for complex wiring environments. Silicone wire is widely used in household appliances, automotive electronics, medical devices, industrial equipment, aerospace, construction, drones, and other fields.
導體(Conductor) 絕緣體 Insulation 導體電阻
Max.Cond
Resistance
(Ω/KM) 		包裝
Unit Length
(M)/(Ft)
線規
Size
(AWG) 		線數/線徑
Construction
(No./mm) 		直徑
Diameter
(mm) 		絕緣厚度
Nominal Thickness
(mm) 		完成外徑
Diameter
(mm)
26 7/0.16 0.48 0.78 2.04 143 305/1000
24 7/0.20 0.6 0.78 2.17 89.3
22 7/0.254 0.76 0.78 2.33 56.4
20 7/0.31 0.94 0.78 2.5 35.2
18 7/0.39 1.17 0.78 2.75 22.2
16 7/0.49 1.47 0.78 2.05 14
14 41/0.254 1.89 0.78 3.43 8.78
12 19/0.47 2.36 0.78 3.92 5.53
10 19/0.61 3.05 1.15 5.36 3.476
8 19/0.75 3.75 1.55 6.85 2.16 100/328
6 266/0.254 5.52 1.55 8.62 1.362
4 420/0.254 6.63 1.55 9.73 0.8559
2 655/0.254 8.75 1.55 11.85 0.5384
1 338/0.4 10 2.03 14.06 0.4268 50/164
