Technical Parameter:
High temperature insulation tubing and sleeves are used to protect wires and connectors, featuring excellent heat resistance. They can maintain stable insulation performance even in high temperature environments, and possess resistance to abrasion, corrosion, and aging. Consequently, they are extensively used in scenarios such as protecting wires and connectors in automotive engine compartments, industrial equipment, and internal wiring of motors.

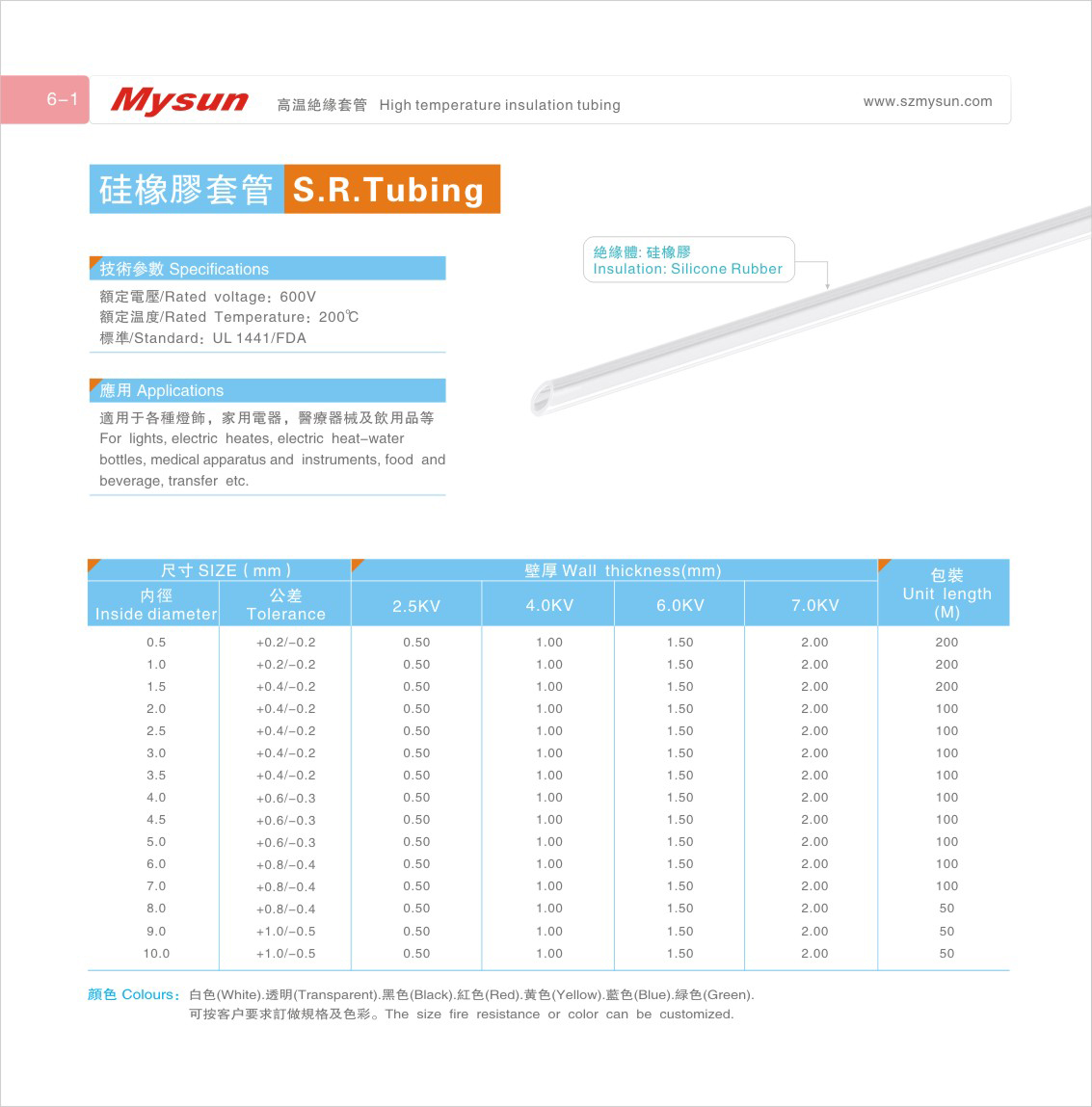

尺寸SIZE(mm) | 壁厚Wall thickness(mm) | 包装 Unit length (M) | ||||
內徑 Inside diameter | 公差 Tolerance | 2.5KV | 4.0KV | 6.0KV | 7.0KV | |
0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 6.0 7.0 8.0 9.0 10.0 | +0.2/-0.2 +0.2/-0.2 +0.4/-0.2 +0.4/-0.2 +0.4/-0.2 +0.4/-0.2 +0.4/-0.2 +0.6/-0.3 +0.6/-0.3 +0.6/-0.3 +0.8/-0.4 +0.8/-0.4 +0.8/-0.4 +1.0/-0.5 +1.0/-0.5 | 0.50 0.50 0.50 0.50 0.50 0.50 0.50 0.50 0.50 0.50 0.50 0.50 0.50 0.50 0.50 | 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 | 1.50 1.50 1.50 1.50 1.50 1.50 1.50 1.50 1.50 1.50 1.50 1.50 1.50 1.50 1.50 | 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 2.00 | 200 200 200 100 100 100 100 100 100 100 100 100 50 50 50 |
15.0 | +2/-1 | - | - | - | 2.00 | 50 |
20.0 | +3/-1 | - | - | - | 2.50 | 50 |
25.0 | +3/-1 | - | - | - | 3.00 | 50 |
For products in stock, we ship immediately. Otherwise, production typically takes 7-10 working days.
MOQs vary by product. For wires and cables ranging from 28AWG to 18AWG, it's 6100 meters. For 16AWG to 12AWG, it's 3050 meters. Beyond 10AWG, the MOQ is 1000 meters.
We offer transportation by sea, land, and air.
We accept various payment methods. Our recommendations are 100% T/T or PayPal before production, or a 70% T/T deposit with the remaining 30% balance due before shipment.
In case of any quality concerns, we will promptly resend fully-qualified products to you.
