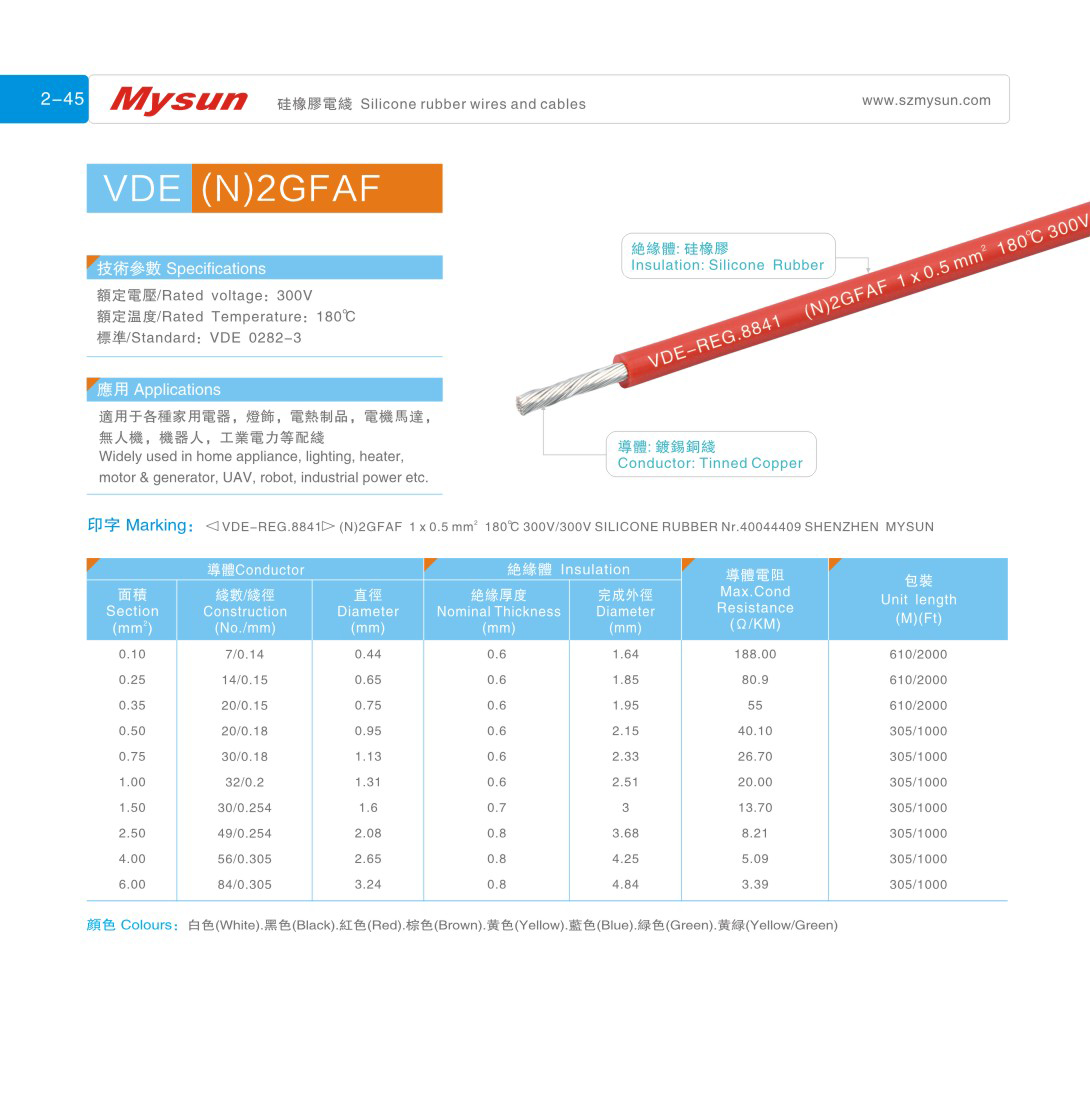

VDE （N）2GFAF
Technical Parameter：
- Rated voltage: 300V
- Rated Temperature: 180℃
- Standard: VDE 0282-3
Product Description
Silicone wire is a type of wire that uses silicone as its insulation material. Its main feature is its excellent high temperature resistance, able to maintain stable performance in temperature ranges from -50°C to +200°C or even higher. Additionally, silicone wire possesses good resistance to chemical corrosion, able to withstand the corrosion of acids, alkalis, solvents, and other chemical substances. Its flexible and abrasion-resistant characteristics make it suitable for complex wiring environments. Silicone wire is widely used in household appliances, automotive electronics, medical devices, industrial equipment, aerospace, construction, drones, and other fields.
| 導體(Conductor) | 絕緣體 Insulation |
導體電阻 Max.Cond Resistance (Ω/KM) |
包裝 Unit Length (M)/(Ft) |
|||
|
線規 Size (AWG) |
線數/線徑 Construction (No./mm) |
直徑 Diameter (mm) |
絕緣厚度 Nominal Thickness (mm) |
完成外徑 Diameter (mm) |
||
| 0.1 | 7/0.14 | 0.44 | 0.6 | 1.64 | 188 | 610/2000 |
| 0.25 | 14/0.15 | 0.65 | 1.85 | 80.9 | ||
| 0.35 | 20/0.15 | 0.75 | 1.95 | 55 | ||
| 0.5 | 20/0.18 | 0.95 | 2.15 | 40.1 | 305/1000 | |
| 0.75 | 30/0.18 | 1.13 | 2.33 | 26.7 | ||
| 1 | 32/0.2 | 1.31 | 2.51 | 20 | ||
| 1.5 | 30/0.254 | 1.6 | 0.7 | 3 | 13.7 | |
| 2.5 | 49/0.254 | 2.08 | 0.8 | 3.68 | 8.21 | |
| 4 | 56/0.305 | 2.65 | 4.25 | 5.09 | ||
| 6 | 84/0.305 | 3.24 | 4.84 | 3.39 | ||
