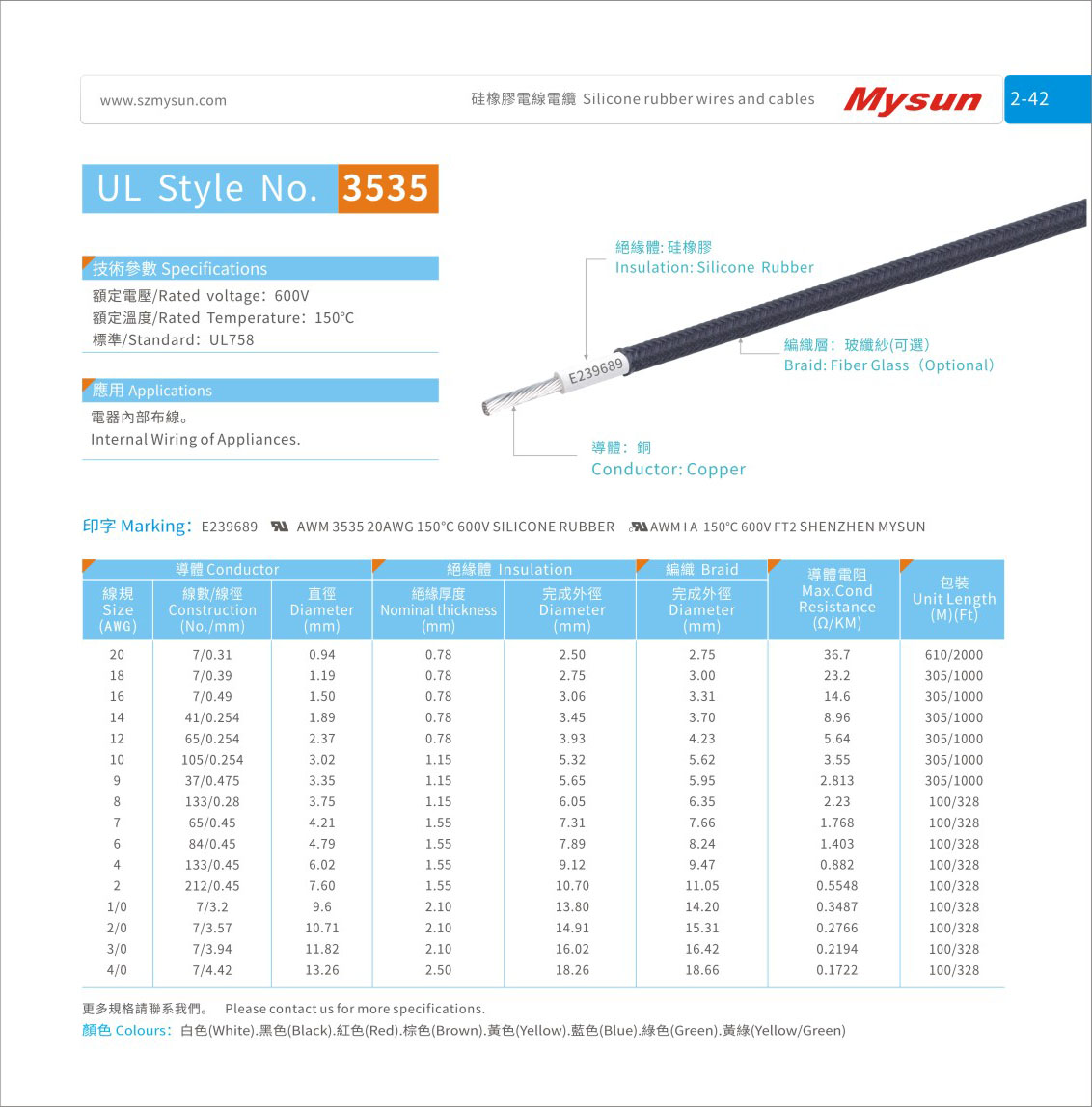

UL Style No.3535
Technical Parameter：
- Rated voltage: 600V
- Rated Temperature: 150℃
- Standard: UL758
Product Description
Silicone braided wire adds a braided outer layer to silicone wire, enhancing its tensile strength and mechanical performance. Its increased tensile strength makes it more suitable for environments that require higher strength and durability, such as industrial equipment and internal wiring of motors. At the same time, silicone braided wire retains the flexibility and abrasion resistance of silicone wire, enabling it to operate stably in complex environments for extended periods
| 導體(Conductor) | 絕緣體 Insulation | 編織Braid | 導體電阻 Max.Cond Resistance (Ω/KM) | 包裝 Unit Length (M)/(Ft) | |||
| 面积 Section (AWG) | 線數/線徑 Construction (No./mm) | 直徑 Diameter (mm) | 絕緣厚度 Nominal Thickness (mm) | 完成外徑 Diameter (mm) | 完成外徑 Diameter (mm) | ||
| 20 18 16 14 12 10 9 8 7 6 4 2 1/0 2/0 3/0 4/0 | 7/0.31 7/0.39 7/0.49 41/0.254 65/0.254 105/0.254 37/0.475 133/0.28 65/0.45 84/0.45 133/0.45 212/0.45 7/3.2 7/3.57 7/3.94 7/4.42 | 0.94 1.19 1.50 1.89 2.37 3.02 3.35 3.75 4.21 4.79 6.02 7.60 9.6 10.71 11.82 13.26 | 0.78 0.78 0.78 0.78 0.78 1.15 1.15 1.15 1.55 1.55 1.55 1.55 2.10 2.10 2.10 2.50 | 2.50 2.75 3.06 3,45 3.93 5.32 5.65 6.05 7.31 7.89 9.12 10.70 13.80 14.91 16.02 18.26 | 2.75 3.00 3.31 3.70 4.23 5.62 5.95 6.35 7.66 8.24 9.47 11.05 14.20 15.31 16.42 18.66 | 36.7 23.2 14.6 8.96 5.64 3.55 2.813 2.23 1.768 1.403 0.882 0.5548 0.3487 0.2766 0.2194 0.1722 | 610/2000 305/1000 305/1000 305/1000 305/1000 305/1000 305/1000 100/328 100/328 100/328 100/328 100/328 100/328 100/328 100/328 100/328 |
FAQ
How soon can I expect delivery?
What is your MOQ?
MOQs vary by product. For wires and cables ranging from 28AWG to 18AWG, it's 6100 meters. For 16AWG to 12AWG, it's 3050 meters. Beyond 10AWG, the MOQ is 1000 meters.
What are your available transportation methods?
We offer transportation by sea, land, and air.
What payment methods do you accept?
We accept various payment methods. Our recommendations are 100% T/T or PayPal before production, or a 70% T/T deposit with the remaining 30% balance due before shipment.
How do you handle quality issues?
In case of any quality concerns, we will promptly resend fully-qualified products to you.
