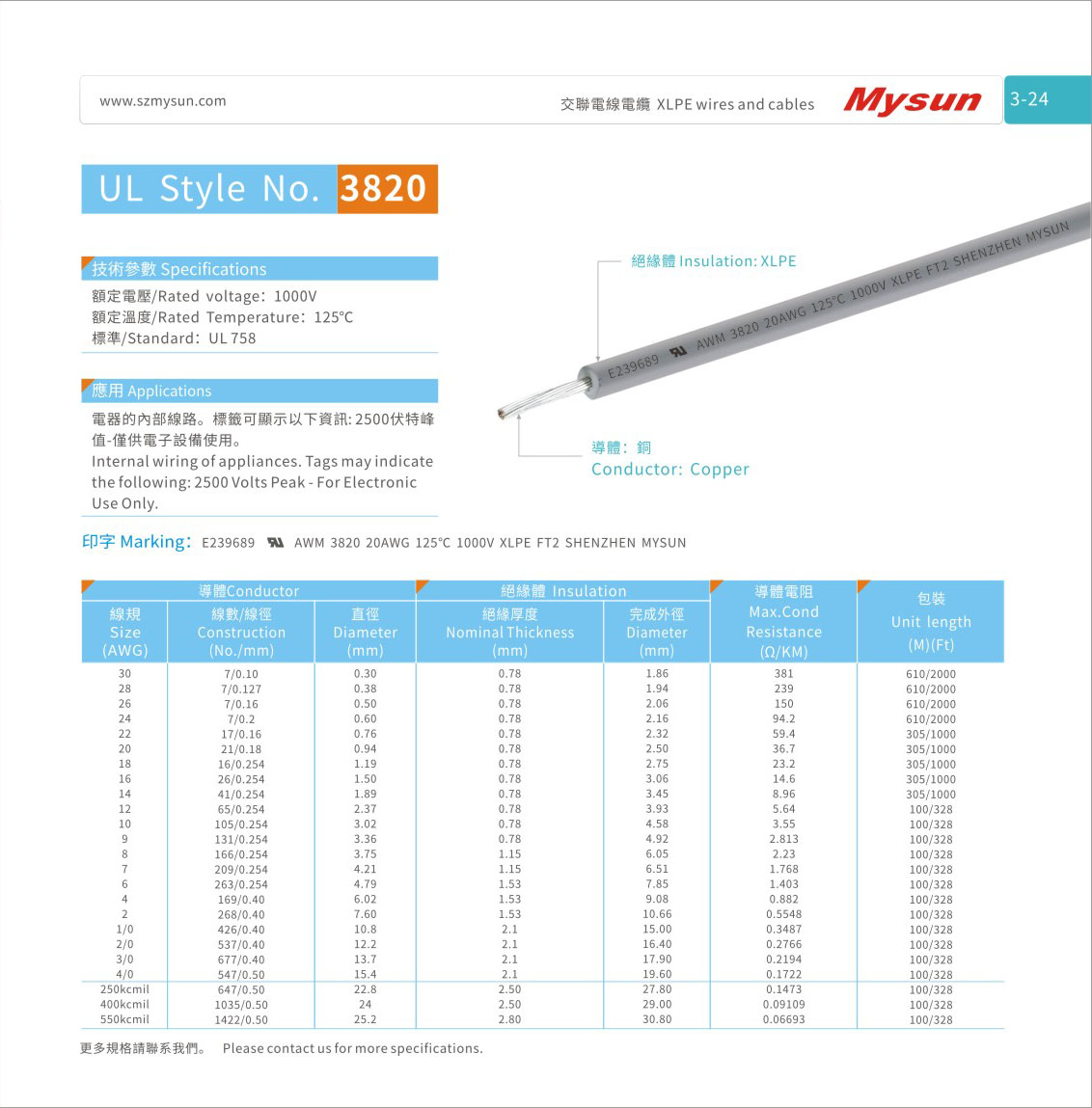

UL Style No.3820
Technical Parameter：
- Rated voltage: 1000V
- Rated Temperature: 125℃
- Standard: UL758
Product Description
Cross-linked polyethylene (XLPE) wire has excellent heat resistance and electrical properties. Its heat resistance allows it to maintain stable performance in temperatures ranging from -40°C to +125°C, making it suitable for scenes like power transmission and equipment connections. Cross-linked polyethylene wire has good electrical insulation properties, effectively preventing current leakage and short circuits, thus finding wide applications in power systems, industrial equipment, and more.
| 導體(Conductor) | 絕緣體 Insulation | 導體電阻 Max.Cond Resistance (Ω/KM) | 包裝 Unit Length (M)/(Ft) | |||
| 線規 Size (AWG) | 線數/線徑 Construction (No./mm) | 直徑 Diameter (mm) | 絕緣厚度 Nominal Thickness (mm) | 完成外徑 Diameter (mm) | ||
| 30 | 7/0.10 | 0.30 | 0.78 | 1.86 | 381 | 610/2000 |
| 28 | 7/0.127 | 0.38 | 0.78 | 1.94 | 239 | 610/2000 |
| 26 | 7/0.16 | 0.50 | 0.78 | 2.06 | 150 | 610/2000 |
| 24 | 7/0.2 | 0.60 | 0.78 | 2.16 | 94.2 | 610/2000 |
| 22 | 17/0.16 | 0.76 | 0.78 | 2.32 | 59.4 | 305/1000 |
| 20 | 21/0.18 | 0.94 | 0.78 | 2.50 | 36.7 | 305/1000 |
| 18 | 16/0.254 | 1.19 | 0.78 | 2.75 | 23.2 | 305/1000 |
| 16 | 26/0.254 | 1.50 | 0.78 | 3.06 | 14.6 | 305/1000 |
| 14 | 41/0.254 | 1.89 | 0.78 | 3.45 | 8.96 | 305/1000 |
| 12 | 65/0.254 | 2.37 | 0.78 | 3.93 | 5.64 | 100/328 |
| 10 | 105/0.254 | 3.02 | 0.78 | 4.58 | 3.55 | 100/328 |
| 9 | 133/0.254 | 3.36 | 0.78 | 4.92 | 2.813 | 100/328 |
| 8 | 133/0.28 | 3.75 | 1.15 | 6.05 | 2.23 | 100/328 |
| 7 | 65/0.45 | 4.21 | 1.15 | 6.51 | 1.768 | 100/328 |
| 6 | 84/0.45 | 4.79 | 1.15 | 7.09 | 1.403 | 100/328 |
| 4 | 133/0.45 | 6.02 | 1.15 | 8.32 | 0.882 | 100/328 |
| 2 | 212/0.45 | 7.60 | 1.15 | 9.90 | 0.5548 | 100/328 |
| 1/0 | 7/3.2 | 9.6 | 1.40 | 12.40 | 0.3487 | 100/328 |
| 2/0 | 7/3.57 | 10.71 | 1.40 | 13.51 | 0.2766 | 100/328 |
| 3/0 | 7/3.94 | 11.82 | 1.40 | 14.62 | 0.2194 | 100/328 |
| 4/0 | 7/4.42 | 13.26 | 1.40 | 16.06 | 0.1722 | 100/328 |
| 250kcmil | 647/0.50 | 22.8 | 2.50 | 27.80 | 0.1473 | 100/328 |
| 400kcmil | 1035/0.50 | 24 | 2.50 | 29.00 | 0.09109 | 100/328 |
| 550kcmil | 1422/0.50 | 25.2 | 2.80 | 30.80 | 0.6693 | 100/328 |
