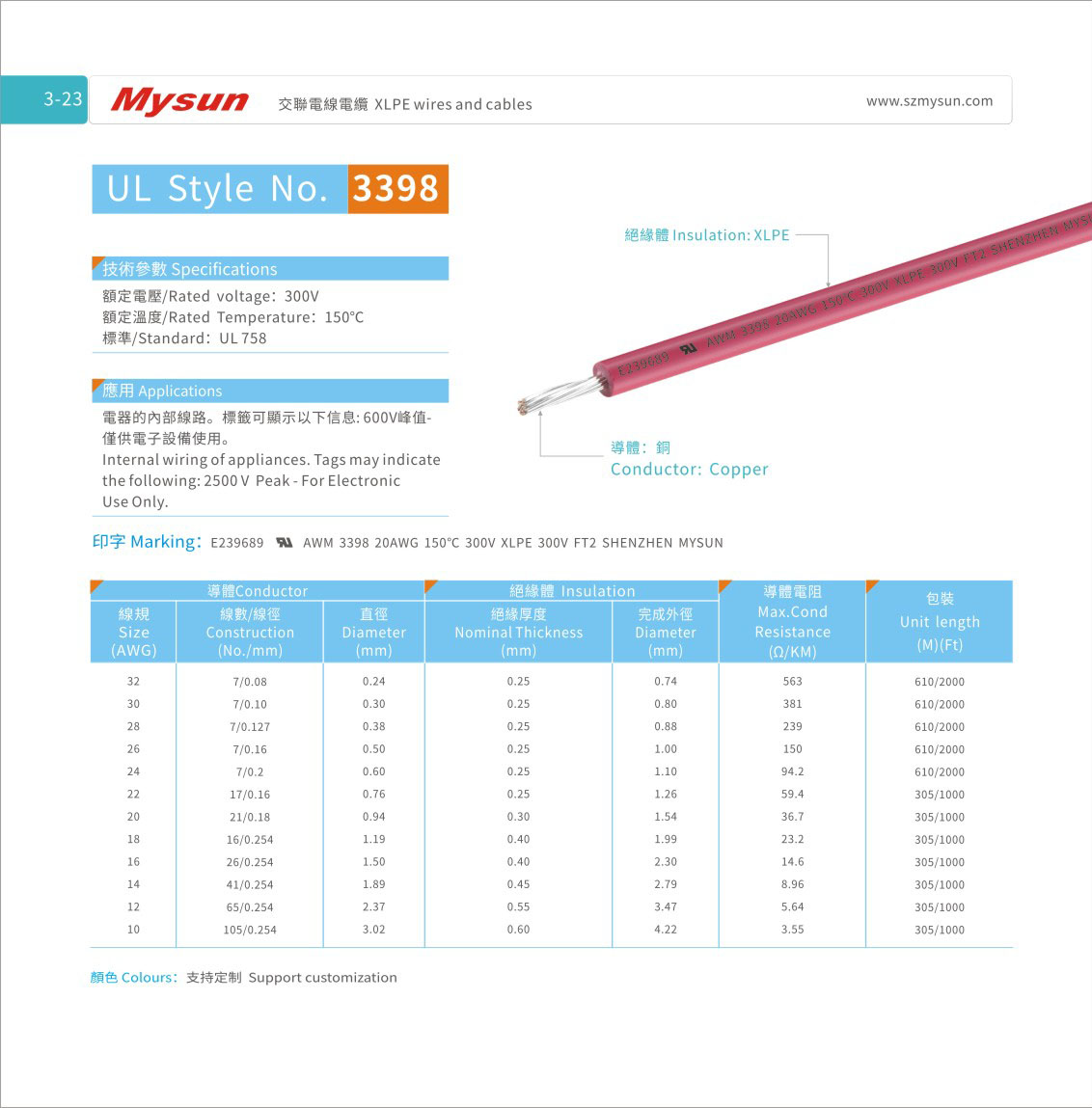

UL Style No.3398
Technical Parameter：
- Rated voltage: 300V
- Rated Temperature: 150℃
- Standard: UL758
Product Description
Cross-linked polyethylene (XLPE) wire has excellent heat resistance and electrical properties. Its heat resistance allows it to maintain stable performance in temperatures ranging from -40°C to +125°C, making it suitable for scenes like power transmission and equipment connections. Cross-linked polyethylene wire has good electrical insulation properties, effectively preventing current leakage and short circuits, thus finding wide applications in power systems, industrial equipment, and more.
| 導體(Conductor) | 絕緣體 Insulation | 導體電阻 Max.Cond Resistance (Ω/KM) | 包裝 Unit Length (M)(Ft) | |||
| 線規 Size (AWG) | 線數/線徑 Construction (No./mm) | 直徑 Diameter (mm) | 絕緣厚度 Nominal Thickness (mm) | 完成外徑 Diameter (mm) | ||
| 32 | 7/0.08 | 0.24 | 0.21 | 0.66 | 563 | 610/2000 |
| 30 | 7/0.10 | 0.30 | 0.21 | 0.72 | 381 | 610/2000 |
| 28 | 7/0.127 | 0.38 | 0.21 | 0.80 | 239 | 610/2000 |
| 26 | 7/0.16 | 0.50 | 0.21 | 0.92 | 150 | 610/2000 |
| 24 | 7/0.2 | 0.60 | 0.21 | 1.02 | 94.2 | 610/2000 |
| 22 | 17/0.16 | 0.76 | 0.21 | 1.18 | 59.4 | 305/1000 |
| 20 | 21/0.18 | 0.94 | 0.21 | 1.36 | 36.7 | 305/1000 |
| 18 | 16/0.254 | 1.19 | 0.21 | 1.61 | 23.2 | 305/1000 |
| 16 | 26/0.254 | 1.50 | 0.21 | 1.92 | 14.6 | 305/1000 |
| 14 | 41/0.254 | 1.89 | 0.21 | 2.31 | 8.96 | 305/1000 |
| 12 | 65/0.254 | 2.37 | 0.21 | 2.79 | 5.64 | 305/1000 |
| 10 | 105/0.254 | 3.02 | 0.21 | 3.44 | 3.55 | 305/1000 |
FAQ
How soon can I expect delivery?
What is your MOQ?
MOQs vary by product. For wires and cables ranging from 28AWG to 18AWG, it's 6100 meters. For 16AWG to 12AWG, it's 3050 meters. Beyond 10AWG, the MOQ is 1000 meters.
What are your available transportation methods?
We offer transportation by sea, land, and air.
What payment methods do you accept?
We accept various payment methods. Our recommendations are 100% T/T or PayPal before production, or a 70% T/T deposit with the remaining 30% balance due before shipment.
How do you handle quality issues?
In case of any quality concerns, we will promptly resend fully-qualified products to you.
