PVC&XLPVC wires and cables

ProductsPVC&XLPVC wires and cables

Products

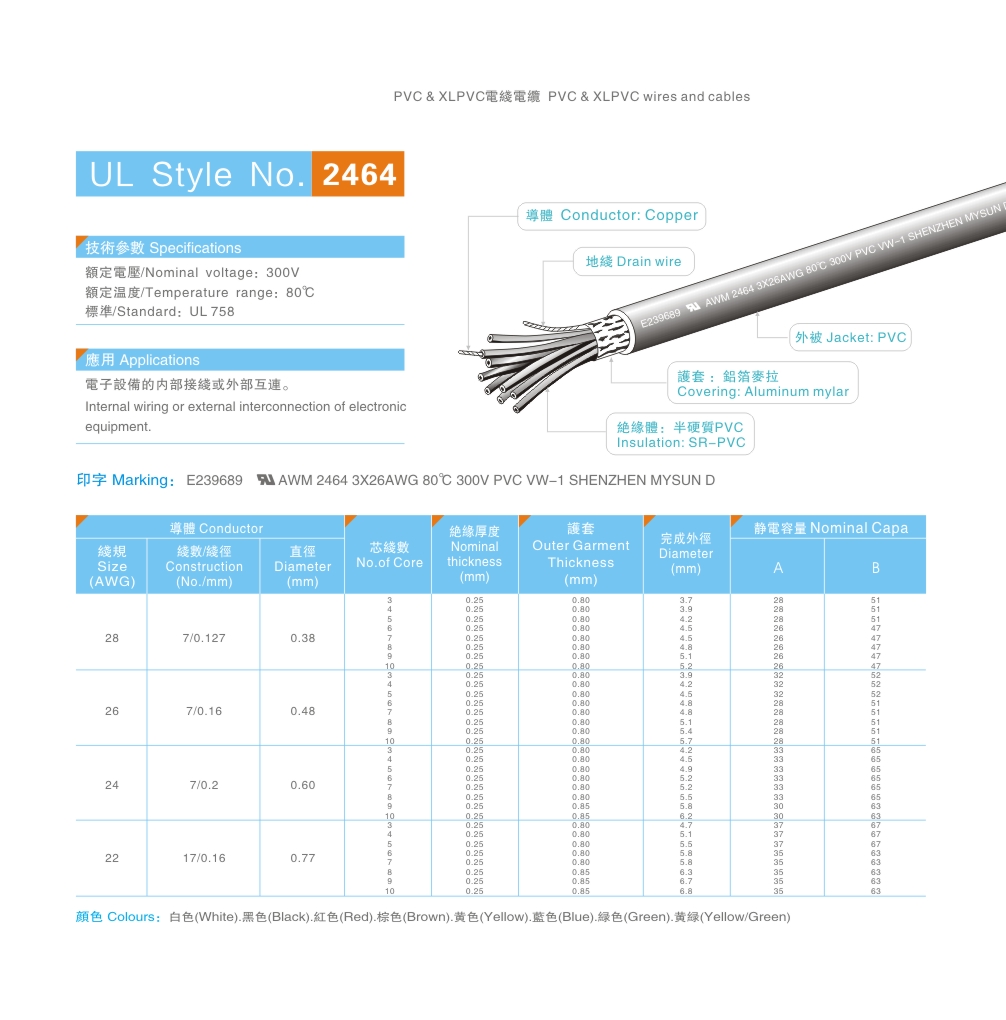

UL Style No.2464

Technical Parameter：

Rated voltage: 300V
Rated temperature: 80℃
Standard: UL758

Product Description

PVC wire is commonly used in general electrical applications due to its low cost and ease of processing. However, its poor heat resistance limits its use in high temperature environments. Cross-linked PVC wire, processed to improve heat resistance and electrical insulation properties, is widely used in general electrical applications such as household appliances and light industry.

導體(Conductor)			芯線数 No.of Core	絕緣厚度 Nominal Thickness (mm)	护套 Outer Garment Thickness（mm)	完成外徑 Diameter (mm) ±0.15	静电容量Nominal Capa
線規 Size (AWG)	線數/線徑 Construction (No./mm)	直徑 Diameter (mm)	芯線数 No.of Core	絕緣厚度 Nominal Thickness (mm)	护套 Outer Garment Thickness（mm)	完成外徑 Diameter (mm) ±0.15	A	B
28	7/0.127	0.38	3	0.25	0.80	3.7	28	51
			4	0.25	0.80	3.9	28	51
			5	0.25	0.80	4.2	28	51
			6	0.25	0.80	4.5	26	47
			7	0.25	0.80	4.5	26	47
			8	0.25	0.80	4.8	26	47
			9	0.25	0.80	5.1	26	47
			10	0.25	0.80	5.2	26	47
26	7/0.16	0.48	3	0.25	0.80	3.9	32	52
			4	0.25	0.80	4.2	32	52
			5	0.25	0.80	4.5	32	52
			6	0.25	0.80	4.8	28	51
			7	0.25	0.80	4.8	28	51
			8	0.25	0.80	5.1	28	51
			9	0.25	0.80	5.4	28	51
			10	0.25	0.80	5.7	28	51
24	7/0.2	0.60	3	0.25	0.80	4.2	33	65
			4	0.25	0.80	4.5	33	65
			5	0.25	0.80	4.9	33	65
			6	0.25	0.80	5.2	33	65
			7	0.25	0.80	5.2	33	65
			8	0.25	0.80	5.5	33	65
			9	0.25	0.85	5.8	30	63
			10	0.25	0.85	6.2	30	63
22	17/0.16	0.77	3	0.25	0.80	4.7	37	67
			4	0.25	0.80	5.1	37	67
			5	0.25	0.80	5.5	37	67
			6	0.25	0.80	5.8	35	63
			7	0.25	0.80	5.8	35	63
			8	0.25	0.85	6.3	35	63
			9	0.25	0.85	6.7	35	63
			10	0.25	0.85	6.8	35	63
