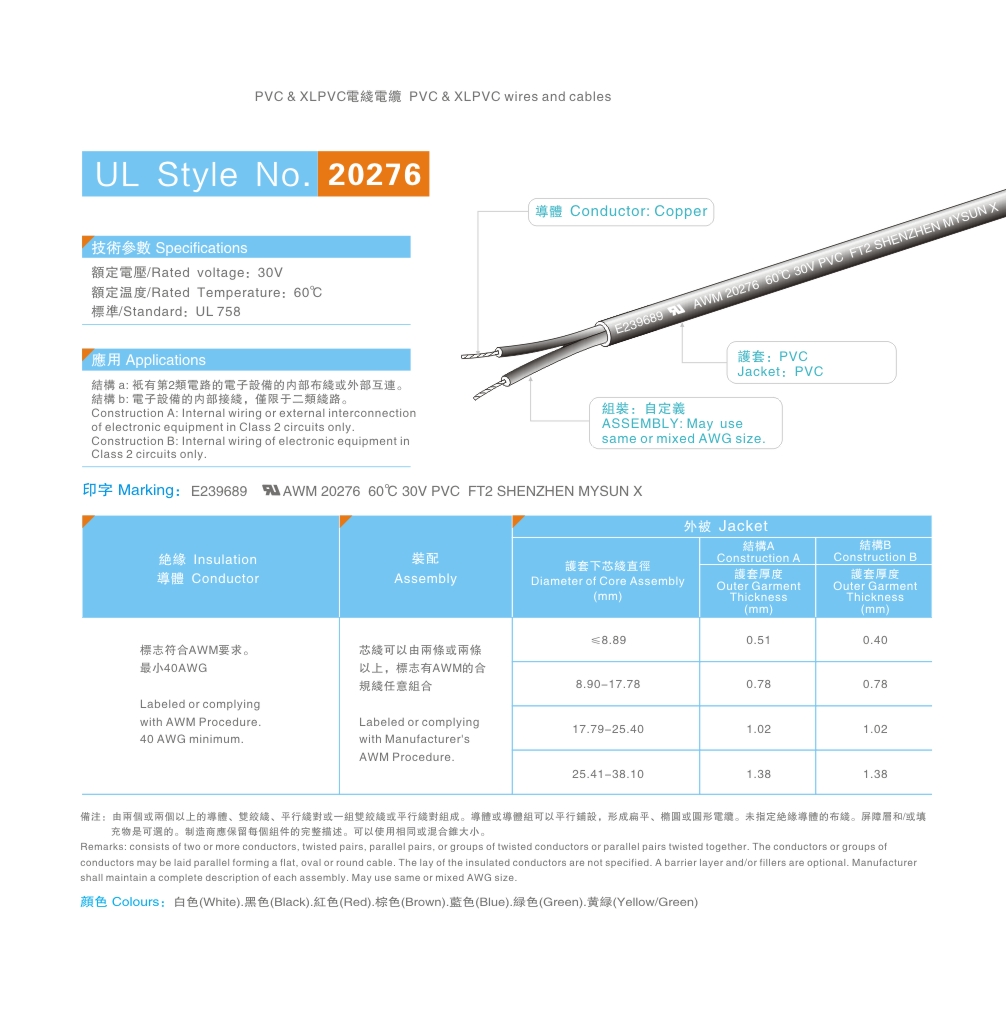

UL Style No.20276
Technical Parameter：
- Rated voltage: 30V
- Rated temperature: 60℃
- Standard: UL758
Product Description
PVC wire is commonly used in general electrical applications due to its low cost and ease of processing. However, its poor heat resistance limits its use in high temperature environments. Cross-linked PVC wire, processed to improve heat resistance and electrical insulation properties, is widely used in general electrical applications such as household appliances and light industry.
| 絕緣Insulation 導體Conductor | 装配Assembly | 外被Jacket | ||
| 护套下芯线直径 Diameter of Core Assembly (mm) | 结构A Construction A | 结构B Construction B | ||
| 护套厚度 Outer Garment Thickness (mm) | 护套厚度 Outer Garment Thickness (mm) | |||
| 标志符合AWM要求。最小40AWG Labeled or complying with AWM Procedure. 40 AWG minimum. | 芯线可以由两条或两条以上，标志有AWM的合规线任意组合 Labeled or complying with Manufacturer's AWM Procedure. | ≤8.89 | 0.51 | 0.40 |
| 8.90-17.78 | 0.78 | 0.78 | ||
| 17.79-25.40 | 1.02 | 1.02 | ||
| 25.41-38.10 | 1.38 | 1.38 | ||
