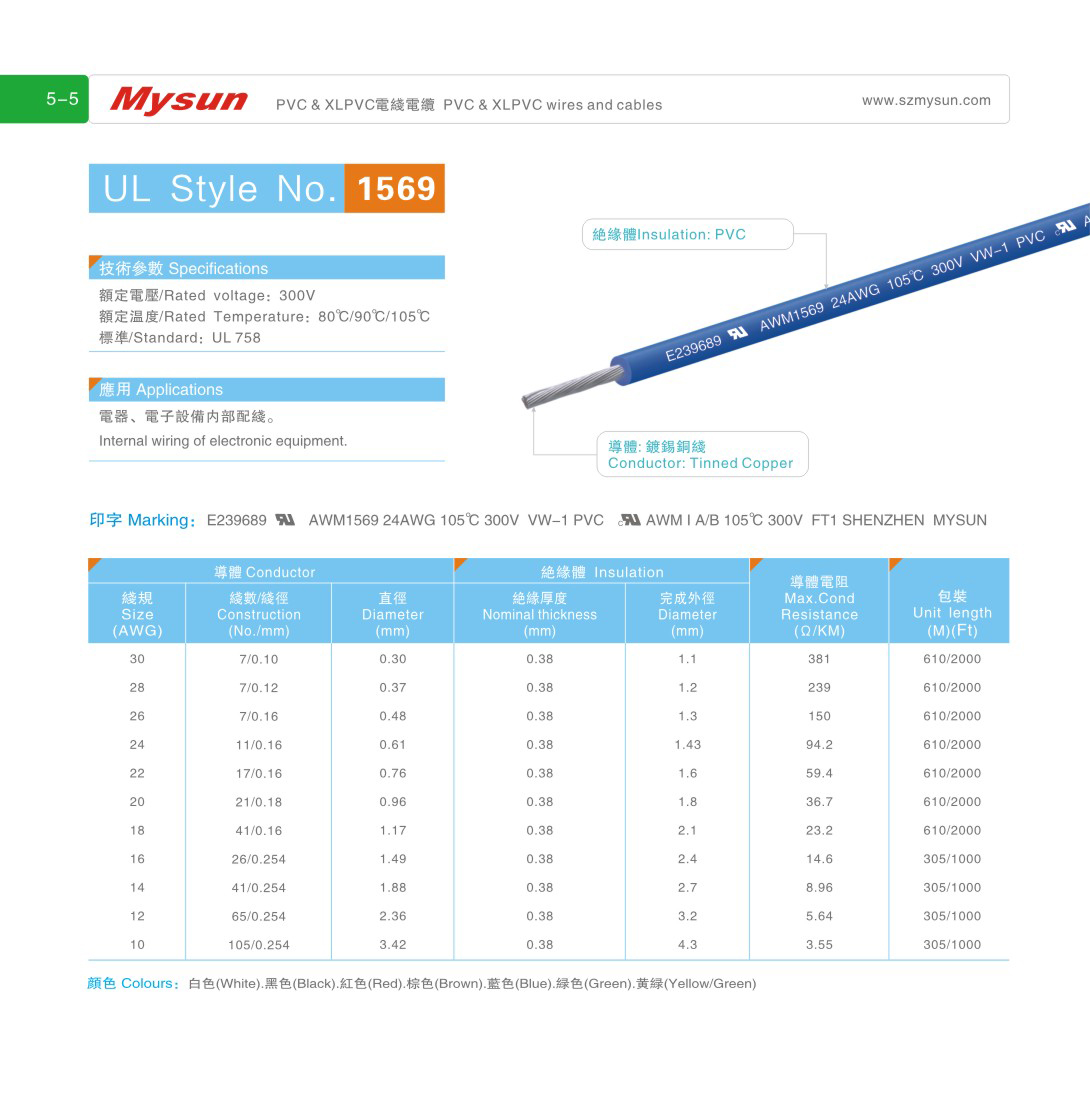

UL Style No.1569

Technical Parameter：

  • Rated voltage: 300V
  • Rated temperature: 80℃/90℃/105℃
  • Standard: UL758
Contact UsDownload
Product Description
PVC wire is commonly used in general electrical applications due to its low cost and ease of processing. However, its poor heat resistance limits its use in high temperature environments. Cross-linked PVC wire, processed to improve heat resistance and electrical insulation properties, is widely used in general electrical applications such as household appliances and light industry.
導體(Conductor) 絕緣體 Insulation 導體電阻
Max.Cond
Resistance
(Ω/KM) 		包裝
Unit Length
(M)/(Ft)
線規
Size
(AWG) 		線數/線徑
Construction
(No./mm) 		直徑
Diameter
(mm) 		絕緣厚度
Nominal Thickness
(mm) 		完成外徑
Diameter
(mm)
30 7/0.10 0.3 0.38 1.1 381 610/2000
28 7/0.12 0.37 0.38 1.2 239
26 7/0.16 0.48 0.38 1.3 150
24 11/0.16 0.61 0.38 1.43 94.2
22 17/0.16 0.76 0.38 1.6 59.4
20 21/0.18 0.96 0.38 1.8 36.7
18 41/0.16 1.17 0.38 2.1 23.2
16 26/0.254 1.49 0.38 2.4 14.6 305/1000
14 41/0.254 1.88 0.38 2.7 8.96
12 65/0.254 2.36 0.38 3.2 5.64
10 105/0.254 3.42 0.38 4.3 3.55


FAQ
How soon can I expect delivery?

For products in stock, we ship immediately. Otherwise, production typically takes 7-10 working days.

What is your MOQ?

MOQs vary by product. For wires and cables ranging from 28AWG to 18AWG, it's 6100 meters. For 16AWG to 12AWG, it's 3050 meters. Beyond 10AWG, the MOQ is 1000 meters.

What are your available transportation methods?

We offer transportation by sea, land, and air.

What payment methods do you accept?

We accept various payment methods. Our recommendations are 100% T/T or PayPal before production, or a 70% T/T deposit with the remaining 30% balance due before shipment.

How do you handle quality issues?

In case of any quality concerns, we will promptly resend fully-qualified products to you.
