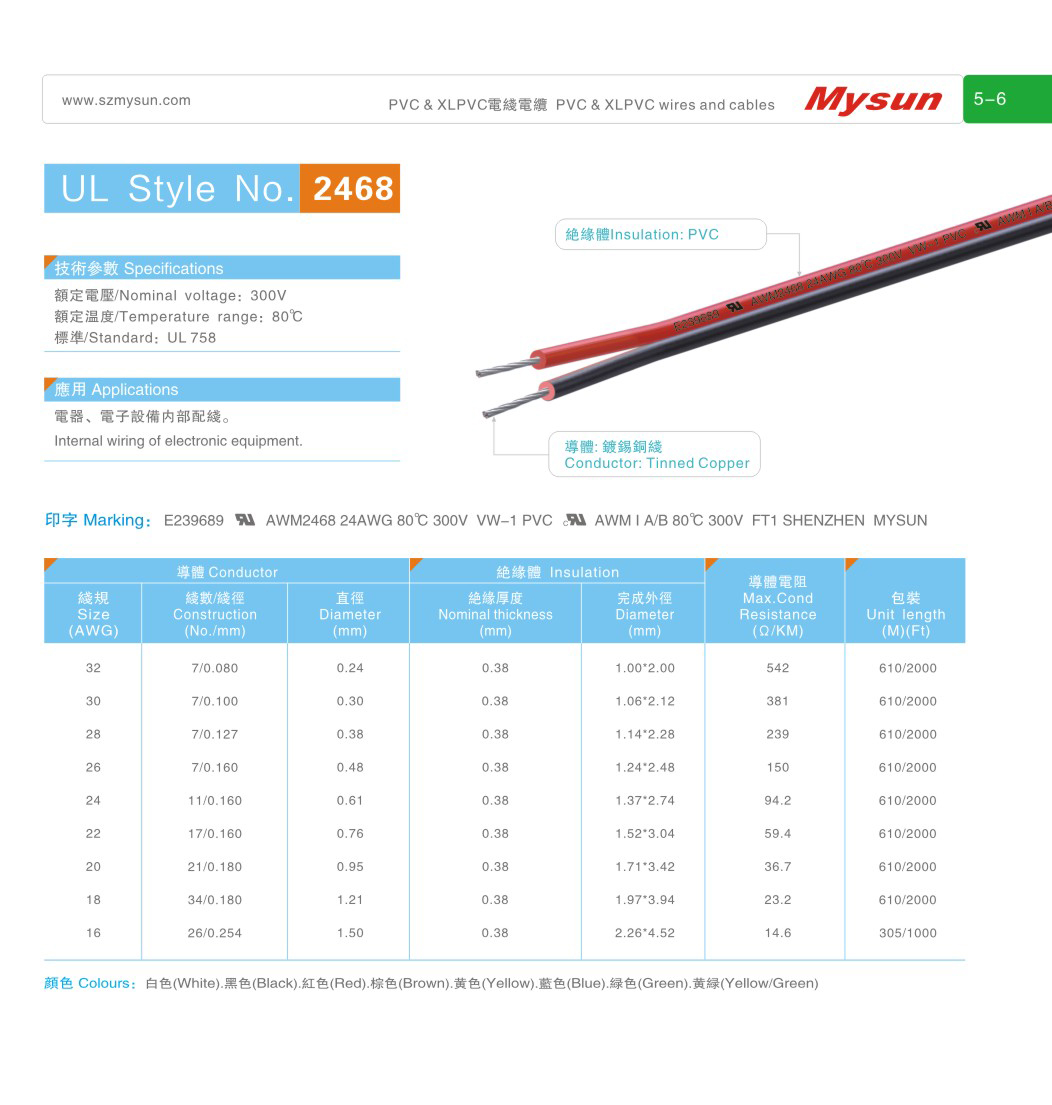

UL Style No.2468
Technical Parameter：
- Rated voltage: 300V
- Rated temperature: 80℃
- Standard: UL758
Product Description
PVC wire is commonly used in general electrical applications due to its low cost and ease of processing. However, its poor heat resistance limits its use in high temperature environments. Cross-linked PVC wire, processed to improve heat resistance and electrical insulation properties, is widely used in general electrical applications such as household appliances and light industry.
| 導體(Conductor) | 絕緣體 Insulation | 導體電阻 Max.Cond Resistance (Ω/KM) | 包裝 Unit Length (M)/(Ft) | |||
| 線規 Size (AWG) | 線數/線徑 Construction (No./mm) | 直徑 Diameter (mm) | 絕緣厚度 Nominal Thickness (mm) | 完成外徑 Diameter (mm) | ||
| 32 | 7/0.08 | 0.24 | 0.38 | 1.00*2.00 | 542 | 610/2000 |
| 30 | 7/0.10 | 0.30 | 1.06*2.12 | 347 | ||
| 28 | 7/0.127 | 0.38 | 1.14*2.28 | 218 | ||
| 26 | 7/0.16 | 0.48 | 1.24*2.48 | 138 | ||
| 24 | 11/0.16 | 0.61 | 1.37*2.74 | 85.9 | 305/1000 | |
| 22 | 17/0.16 | 0.76 | 1.52*3.04 | 54.3 | ||
| 20 | 21/0.18 | 0.95 | 1.71*3.42 | 33.9 | ||
| 18 | 34/0.18 | 1.21 | 1.97*3.94 | 21.4 | ||
| 16 | 26/0.254 | 1.50 | 2.26*4.52 | 13.5 | ||
