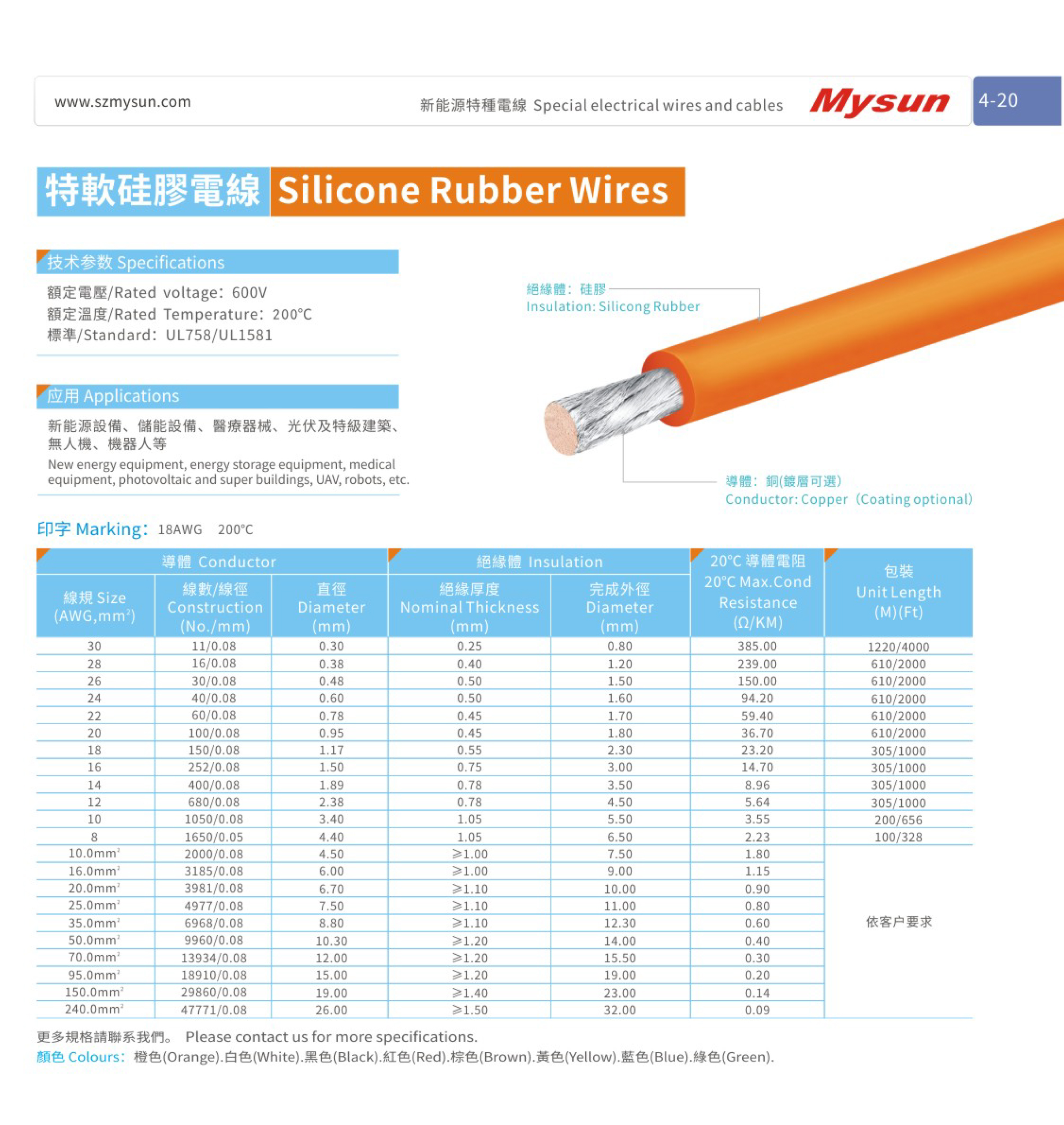

Supper flexible silicone wire
Technical Parameter：
- Rated voltage: 600V
- Rated Temperature: 200℃
- Standard: UL758/UL1581
Product Description
New energy special wires are designed for fields like solar and wind power, boasting excellent weather resistance and heat tolerance. They are widely used in related systems. In the automotive sector, new energy vehicle wires (EV wires) are equally crucial. They withstand high temperatures and corrosion, have strong insulation, reduce energy loss, and enhance the reliability and lifespan of automotive systems. In electric and hybrid vehicles, EV wires ensure the safe and efficient operation of modern automotive technology.
| 導體(Conductor) | 絕緣层 Insulation | 20℃導體電阻 20℃ Max.Cond Resistance (Ω/KM) | 包裝 Unit Length (M)/(Ft) | |||
| 線規 Size (AWG) | 線數/線徑 Construction (No./mm) | 直徑 Diameter (mm) | 絕緣厚度 Nominal Thickness (mm) | 完成外徑 Diameter (mm) | ||
| 30 | 11/0.08 | 0.3 | 0.25 | 0.80 | 385.00 | 1220/4000 |
| 28 | 16/0.08 | 0.38 | 0.40 | 1.20 | 239.00 | 610/2000 |
| 26 | 30/0.08 | 0.48 | 0.50 | 1.50 | 150.00 | |
| 24 | 40/0.08 | 0.6 | 0.50 | 1.60 | 94.20 | |
| 22 | 60/0.08 | 0.78 | 0.45 | 1.70 | 59.40 | |
| 20 | 100/0.08 | 0.95 | 0.45 | 1.80 | 36.70 | |
| 18 | 150/0.08 | 1.17 | 0.55 | 2.30 | 23.20 | 305/1000 |
| 16 | 252/0.08 | 1.5 | 0.75 | 3.00 | 14.70 | |
| 14 | 400/0.08 | 1.89 | 0.78 | 3.50 | 8.96 | |
| 12 | 680/0.08 | 2.38 | 0.78 | 4.50 | 5.64 | |
| 10 | 1050/0.08 | 3.4 | 1.05 | 5.50 | 3.55 | 200/656 |
| 8 | 1650/0.05 | 4.4 | 1.05 | 6.50 | 2.23 | 100/328 |
| 10.0mm2 | 2000/0.08 | 4.5 | 1.00 | 7.50 | 1.80 | 依客户要求 Customization |
| 16.0mm2 | 3185/0.08 | 6 | 1.00 | 9.00 | 1.15 | |
| 20.0mm2 | 3981/0.08 | 6.7 | 1.10 | 10.00 | 0.90 | |
| 25.0mm2 | 4977/0.08 | 7.5 | 1.10 | 11.00 | 0.80 | |
| 35.0mm2 | 6968/0.08 | 8.8 | 1.10 | 12.30 | 0.60 | |
| 50.0mm2 | 9960/0.08 | 10.3 | 1.20 | 14.00 | 0.40 | |
| 70.0mm2 | 13934/0.08 | 12 | 1.20 | 15.50 | 0.30 | |
| 95.0mm2 | 18910/0.08 | 15 | 1.20 | 19.00 | 0.20 | |
| 150.0mm2 | 29860/0.08 | 19 | 1.40 | 23.00 | 0.14 | |
| 240.0mm2 | 47771/0.08 | 26 | 1.50 | 32.00 | 0.09 | |
FAQ
How soon can I expect delivery?
What is your MOQ?
MOQs vary by product. For wires and cables ranging from 28AWG to 18AWG, it's 6100 meters. For 16AWG to 12AWG, it's 3050 meters. Beyond 10AWG, the MOQ is 1000 meters.
What are your available transportation methods?
We offer transportation by sea, land, and air.
What payment methods do you accept?
We accept various payment methods. Our recommendations are 100% T/T or PayPal before production, or a 70% T/T deposit with the remaining 30% balance due before shipment.
How do you handle quality issues?
In case of any quality concerns, we will promptly resend fully-qualified products to you.
