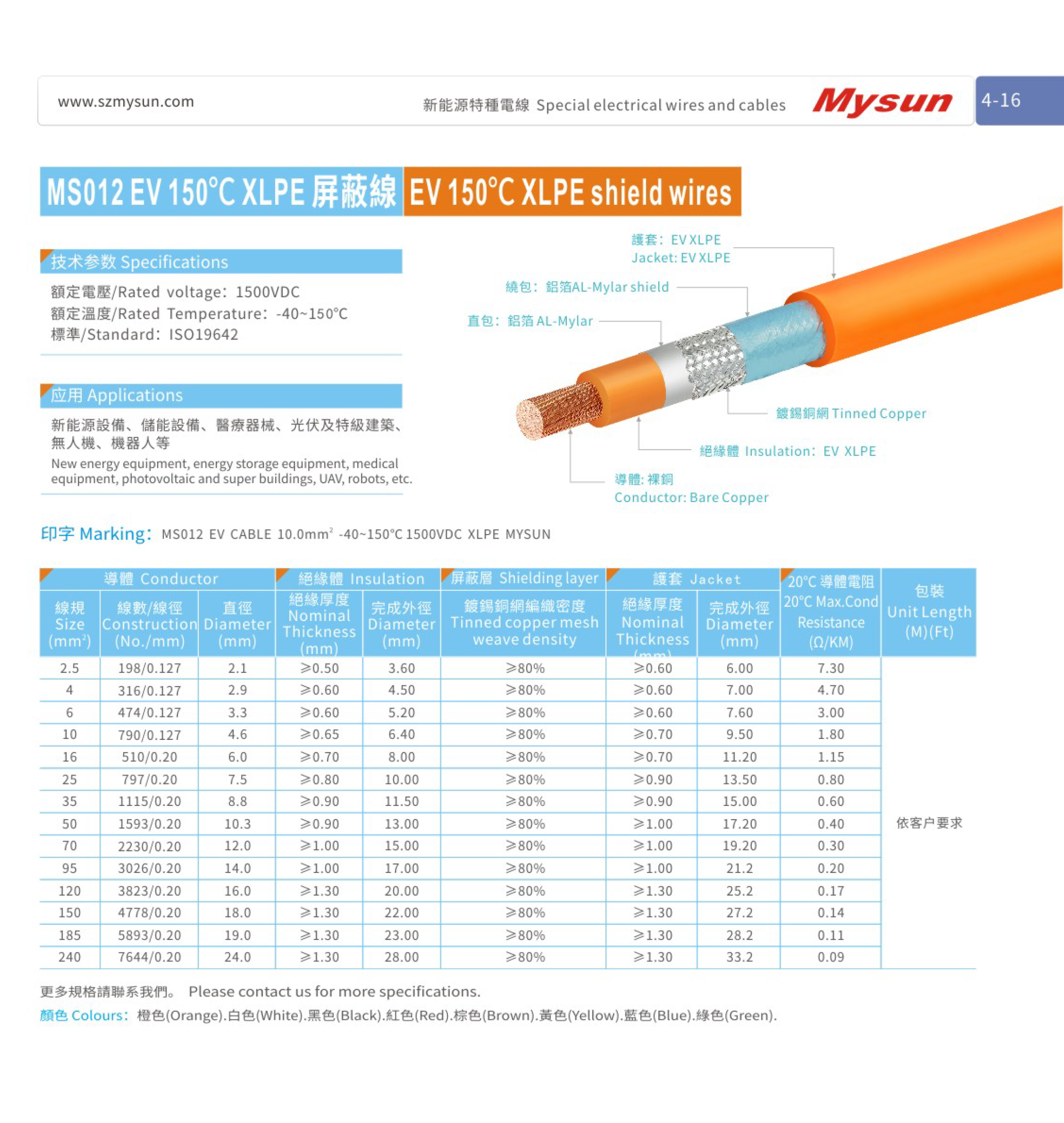

MS012 EV 150℃ XLPE shielded wire
Technical Parameter：
- Rated voltage: 1500VDC
- Rated Temperature: -40~150℃
- Standard: ISO19642
Product Description
New energy special wires are designed for fields like solar and wind power, boasting excellent weather resistance and heat tolerance. They are widely used in related systems. In the automotive sector, new energy vehicle wires (EV wires) are equally crucial. They withstand high temperatures and corrosion, have strong insulation, reduce energy loss, and enhance the reliability and lifespan of automotive systems. In electric and hybrid vehicles, EV wires ensure the safe and efficient operation of modern automotive technology.
| 導體(Conductor) | 絕緣层 Insulation | 屏蔽层 Shielding layer | 护套Jacket | 20℃導體電阻 20℃ Max.Cond Resistance (Ω/KM) | 包裝 Unit Length (M)(Ft) | ||||
| 線規 Size (mm2) | 線數/線徑 Construction (No./mm) | 直徑 Diameter (mm) | 絕緣厚度 Nominal Thickness (mm) | 完成外徑 Diameter (mm) | 镀锡铜网编织密度 Density of copper mesh | 絕緣厚度 Nominal Thickness (mm) | 完成外徑 Diameter (mm) | ||
| 2.5 | 198/0.127 | 2.1 | 0.75 | 3.60 | ≥80% | 0.90 | 6.00 | 7.30 | 依客户要求 Customization |
| 4 | 316/0.127 | 2.9 | 0.80 | 4.50 | ≥80% | 0.90 | 7.00 | 4.70 | |
| 6 | 474/0.127 | 3.3 | 0.80 | 5.20 | ≥80% | 0.90 | 7.60 | 3.00 | |
| 10 | 790/0.127 | 4.6 | 0.90 | 6.40 | ≥80% | 1.00 | 9.50 | 1.80 | |
| 16 | 510/0.20 | 6 | 1.00 | 8.00 | ≥80% | 1.00 | 11.20 | 1.15 | |
| 25 | 797/0.20 | 7.5 | 1.25 | 10.00 | ≥80% | 1.30 | 13.50 | 0.80 | |
| 35 | 1115/0.20 | 8.8 | 1.30 | 11.50 | ≥80% | 1.30 | 15.00 | 0.60 | |
| 50 | 1593/0.20 | 10.3 | 1.30 | 13.00 | ≥80% | 1.50 | 17.20 | 0.40 | |
| 70 | 2230/0.20 | 12 | 1.50 | 15.00 | ≥80% | 1.50 | 19.20 | 0.30 | |
| 95 | 3026/0.20 | 16 | 1.50 | 19.00 | ≥80% | 1.50 | 23.20 | 0.20 | |
| 120 | 3823/0.20 | 18 | 2.00 | 22.00 | ≥80% | 2.00 | 27.20 | 0.17 | |
| 150 | 4778/0.20 | 19 | 2.00 | 23.00 | ≥80% | 2.00 | 28.20 | 0.14 | |
| 185 | 5893/0.20 | 22 | 2.00 | 26.00 | ≥80% | 2.00 | 31.20 | 0.11 | |
| 240 | 7644/0.20 | 26 | 2.00 | 30.00 | ≥80% | 2.00 | 35.20 | 0.09 | |
