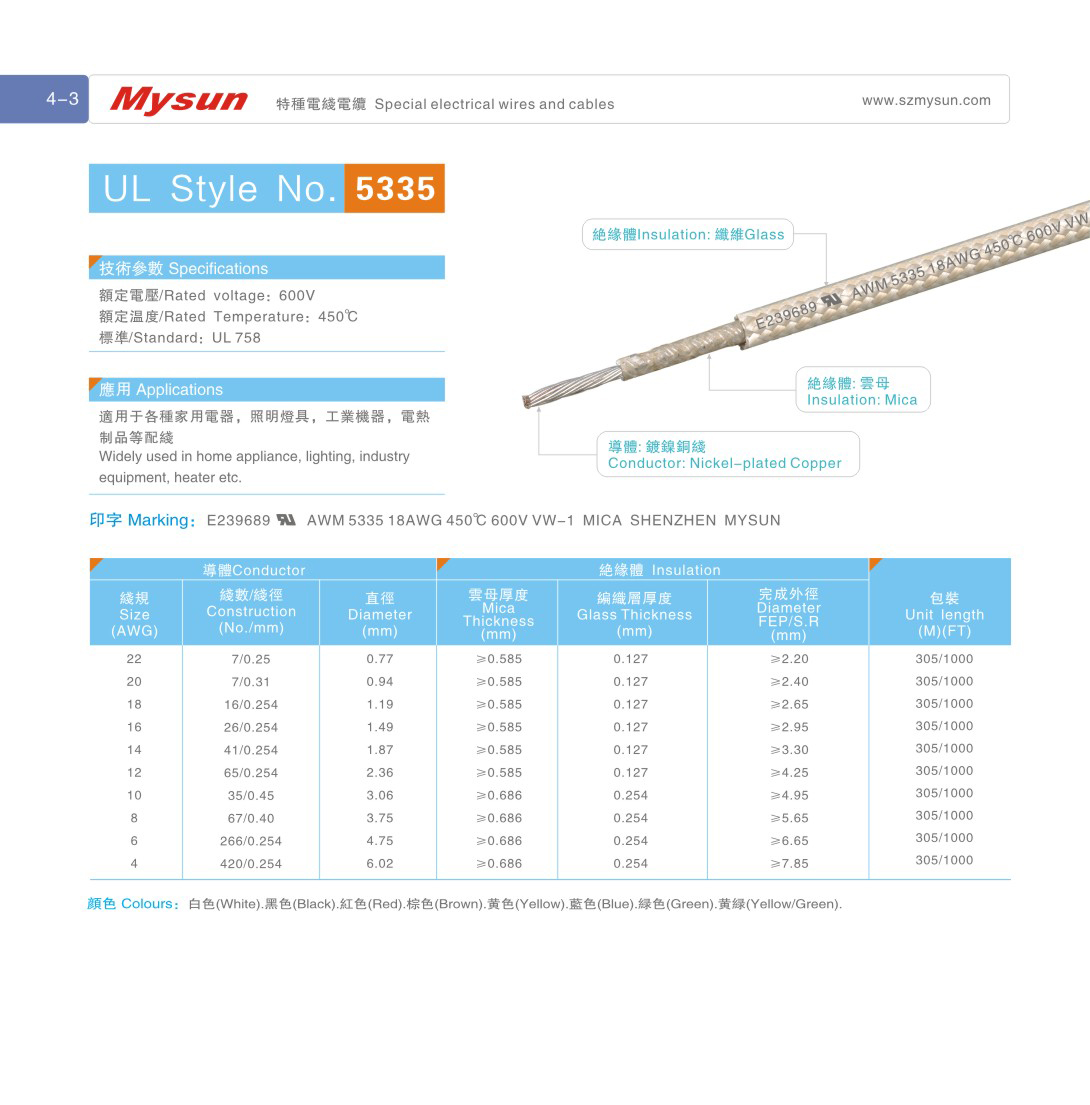

UL Style No. 5335
Technical Parameter：
- Rated voltage: 600V
- Rated temperature: 450℃
- Standard: UL758
Product Description
Mica wire is a special type of wire, mainly made of mica, which has good high-temperature resistance and chemical corrosion resistance, and can work stably in extreme high-temperature environments. In addition, mica wires also have good insulation performance, are not prone to aging and deterioration, have a long service life, and good stress performance.
Mica wire application:
1. Power field: In the power system, mica wires are widely used as internal connecting wires, leads, and grinding wires for electrical equipment such as generators, transformers, and motors in high-temperature environments.
2. Metallurgical field: In the metallurgical industry, mica wires are mainly used for manufacturing internal circuits, leads, and wiring of high-temperature equipment such as heat treatment furnaces, electric arc furnaces, and induction furnaces.
3. Mechanical manufacturing field: In the field of mechanical manufacturing, mica wires are suitable for internal circuits, leads, and wiring of electrical heating systems, hot blast furnaces, high-temperature furnaces, and other equipment in high-temperature environments.
4. Other fields: In addition to the main application areas mentioned above, mica wires are also widely used in automotive manufacturing, aerospace, medical equipment, electronic instruments, fiber optic communication and other fields.
Mica wire application:
1. Power field: In the power system, mica wires are widely used as internal connecting wires, leads, and grinding wires for electrical equipment such as generators, transformers, and motors in high-temperature environments.
2. Metallurgical field: In the metallurgical industry, mica wires are mainly used for manufacturing internal circuits, leads, and wiring of high-temperature equipment such as heat treatment furnaces, electric arc furnaces, and induction furnaces.
3. Mechanical manufacturing field: In the field of mechanical manufacturing, mica wires are suitable for internal circuits, leads, and wiring of electrical heating systems, hot blast furnaces, high-temperature furnaces, and other equipment in high-temperature environments.
4. Other fields: In addition to the main application areas mentioned above, mica wires are also widely used in automotive manufacturing, aerospace, medical equipment, electronic instruments, fiber optic communication and other fields.
| 導體(Conductor) | 絕緣层 Insulation | 包裝 Unit Length (M)/(Ft) | ||||
| 線規 Size (AWG) | 線數/線徑 Construction (No./mm) | 直徑 Diameter (mm) | 雲母壁厚 Mica Thickness (mm) | 玻纖壁厚 Glass Thickness (mm) | 直徑 Diameter (mm) | |
| 24 | 7/0.20 | 0.61 | ≥0.381 | 0.178 | ≥1.75 | 305/1000 |
| 22 | 7/0.25 | 0.77 | ≥1.90 | |||
| 20 | 7/0.31 | 0.94 | ≥2.10 | |||
| 18 | 16/0.254 | 1.19 | ≥2.30 | |||
| 16 | 26/0.254 | 1.49 | ≥2.60 | |||
| 14 | 41/0.254 | 1.87 | ≥3.00 | 200/656 | ||
| 12 | 65/0.254 | 2.36 | ≥0.508 | 0.381 | ≥4.15 | 100/328 |
| 10 | 35/0.45 | 3.06 | ≥4.85 | |||
| 8 | 67/0.40 | 3.75 | ≥5.55 | |||
| 6 | 266/0.254 | 4.75 | ≥6.55 | |||
| 4 | 420/0.254 | 6.02 | ≥7.80 | |||
