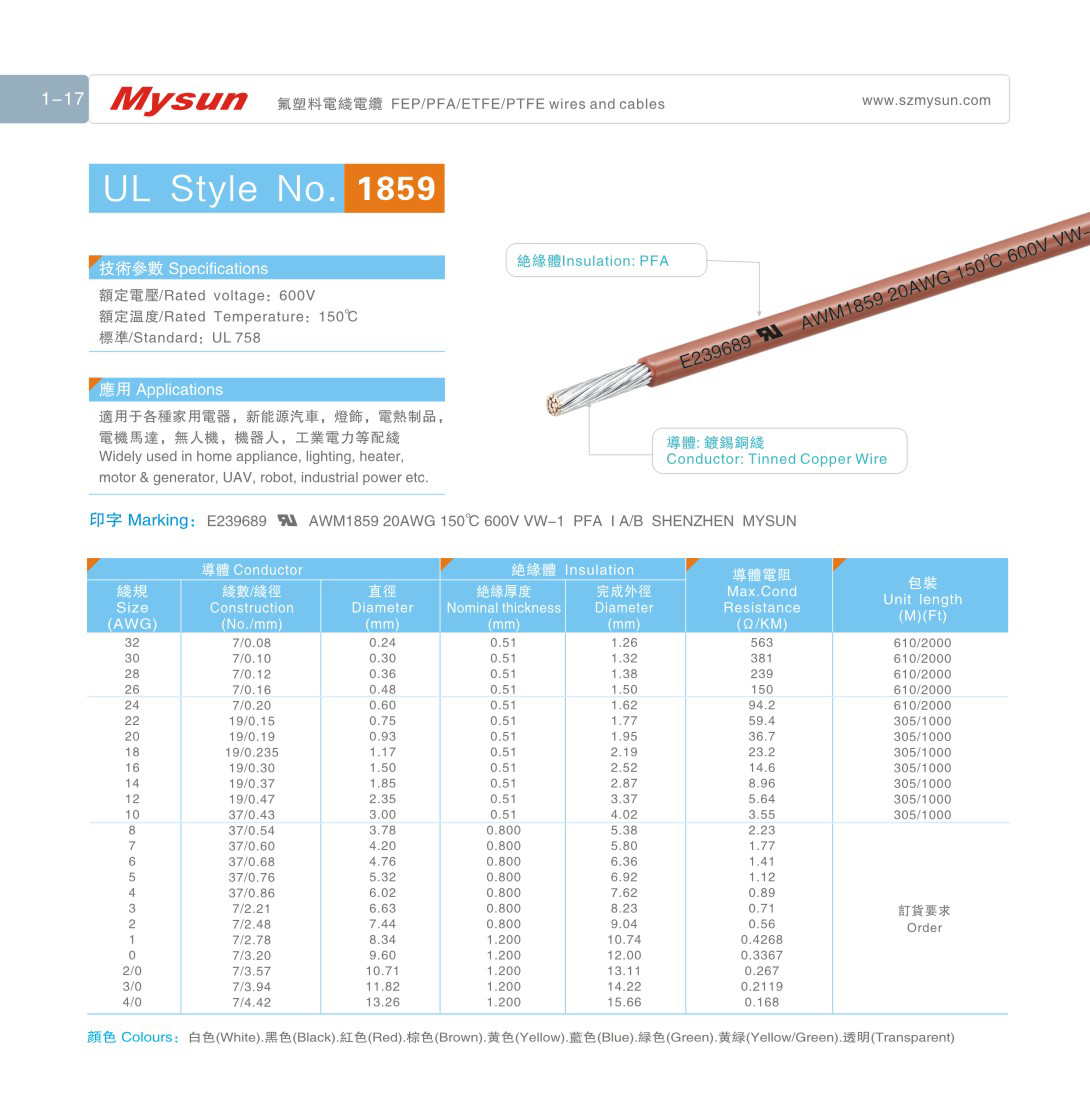

UL Style No.1859
Technical Parameter：
- Rated voltage: 600V
- Rated Temperature: 150℃
- Standard: UL758
Product Description
Besides its excellent high and low temperature resistance, FEP/PFA/ETFE/PTFE wire also exhibits outstanding corrosion resistance, being nearly insoluble in any organic solvent. It can resist oils, strong acids, strong alkalis, strong oxidants, and more. With good insulation performance, high voltage, high frequency, low loss, moisture resistance, flame resistance, aging resistance, and long service life. Compared to silicone wires, FEP/PFA/ETFE/PTFE wire has a smoother and harder material that is less prone to wear and scratches. It finds widespread applications in fields such as chemical engineering, electronics, aerospace, and medical industries.
| 導體(Conductor) | 絕緣體 Insulation | 導體電阻 Max.Cond Resistance (Ω/KM) | 包裝 Unit Length (M)/(Ft) | |||
| 線規 Size (AWG) | 線數/線徑 Construction (No./mm) | 直徑 Diameter (mm) | 絕緣厚度 Nominal Thickness (mm) | 完成外徑 Diameter (mm) | ||
| 32 | 7/0.08 | 0.24 | 0.510 | 1.26 | 563 | 610(2000) |
| 30 | 7/0.10 | 0.30 | 0.510 | 1.32 | 381 | 610(2000) |
| 28 | 7/0.12 | 0.36 | 0.510 | 1.38 | 239 | 610(2000) |
| 26 | 7/0.16 | 0.48 | 0.510 | 1.50 | 150 | 610(2000) |
| 24 | 7/0.20 | 0.60 | 0.510 | 1.62 | 94.2 | 610(2000) |
| 22 | 19/0.15 | 0.75 | 0.510 | 1.77 | 59.4 | 305(1000) |
| 20 | 19/0.19 | 0.93 | 0.510 | 1.95 | 36.7 | 305(1000) |
| 18 | 19/0.235 | 1.17 | 0.510 | 2.19 | 23.2 | 305(1000) |
| 16 | 19/0.30 | 1.50 | 0.510 | 2.52 | 14.6 | 305(1000) |
| 14 | 19/0.37 | 1.85 | 0.510 | 2.87 | 8.96 | 305(1000) |
| 12 | 19/0.47 | 2.35 | 0.510 | 3.37 | 5.64 | 305(1000) |
| 10 | 37/0.43 | 3.00 | 0.510 | 4.02 | 3.55 | 305(1000) |
| 8 | 37/0.54 | 3.78 | 0.80 | 5.38 | 2.23 | 依客戶要求 Customization |
| 7 | 37/0.60 | 4.20 | 0.80 | 5.80 | 1.77 | |
| 6 | 37/0.68 | 4.76 | 0.80 | 6.36 | 1.41 | |
| 5 | 37/0.76 | 5.32 | 0.80 | 6.92 | 1.12 | |
| 4 | 37/0.86 | 6.02 | 0.80 | 7.62 | 0.89 | |
| 3 | 7/2.21 | 6.63 | 0.80 | 8.23 | 0.71 | |
| 2 | 7/2.48 | 7.44 | 0.80 | 9.04 | 0.56 | |
| 1 | 7/2.78 | 8.34 | 1.20 | 10.74 | 0.4268 | |
| 0 | 7/3.20 | 9.60 | 1.20 | 12.00 | 0.3367 | |
| 2/0 | 7/3.57 | 10.71 | 1.20 | 13.11 | 0.267 | |
| 3/0 | 7/3.94 | 11.82 | 1.20 | 14.22 | 0.2119 | |
| 4/0 | 7/4.42 | 13.26 | 1.20 | 15.66 | 0.168 | |
