ProductsFEP/PFA/ETFE/PTFE wires and cables

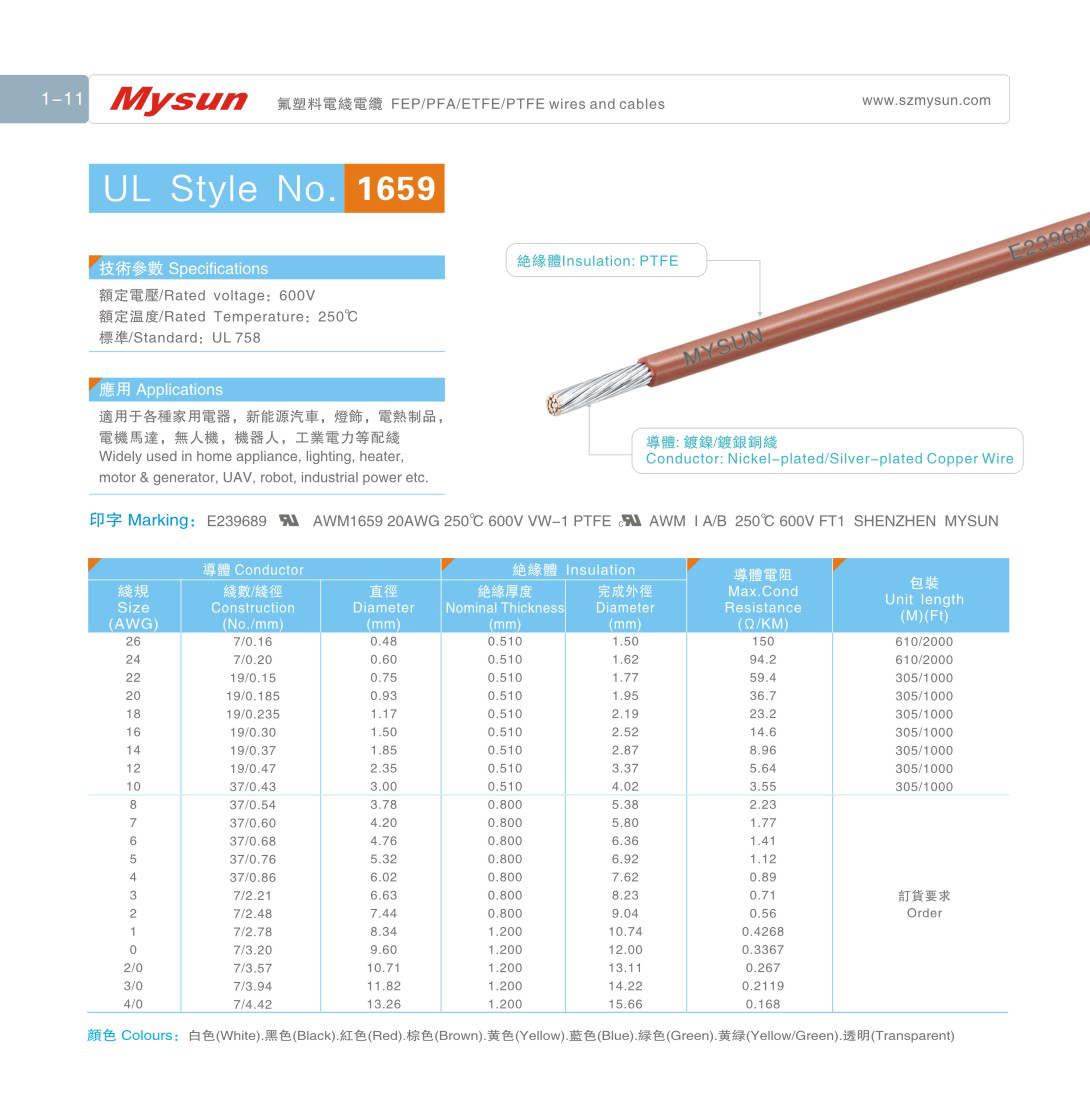

UL Style No.1659

Technical Parameter:

  • Rated voltage: 600V
  • Rated Temperature: 250℃
  • Standard: UL758
Product Description
Besides its excellent high and low temperature resistance, FEP/PFA/ETFE/PTFE wire also exhibits outstanding corrosion resistance, being nearly insoluble in any organic solvent. It can resist oils, strong acids, strong alkalis, strong oxidants, and more. With good insulation performance, high voltage, high frequency, low loss, moisture resistance, flame resistance, aging resistance, and long service life. Compared to silicone wires, FEP/PFA/ETFE/PTFE wire has a smoother and harder material that is less prone to wear and scratches. It finds widespread applications in fields such as chemical engineering, electronics, aerospace, and medical industries.
導體(Conductor) 絕緣體 Insulation 導體電阻
Max.Cond
Resistance
(Ω/KM)
包裝
Unit Length
(M)/(Ft)
線規
Size
(AWG)
線數/線徑
Construction
(No./mm)
直徑
Diameter
(mm)
絕緣厚度
Nominal Thickness
(mm)
完成外徑
Diameter
(mm)
26 7/0.16 0.48 0.510 1.50 150 610(2000)
24 7/0.20 0.60 0.510 1.62 94.2 610(2000)
22 19/0.15 0.75 0.510 1.77 59.4 305(1000)
20 19/0.185 0.93 0.510 1.95 36.7 305(1000)
18 19/0.235 1.17 0.510 2.19 23.2 305(1000)
16 19/0.30 1.50 0.510 2.52 14.6 305(1000)
14 19/0.37 1.85 0.510 2.87 8.96 305(1000)
12 19/0.47 2.35 0.510 3.37 5.64 305(1000)
10 37/0.43 3.00 0.510 4.02 3.55 305(1000)
8 37/0.54 3.78 0.8 5.38 2.23 依客戶要求
Customization
7 37/0.60 4.20 0.8 5.80 1.77
6 37/0.68 4.76 0.8 6.36 1.41
5 37/0.76 5.32 0.8 6.92 1.12
4 37/0.86 6.02 0.8 7.62 0.89
3 7/2.21 6.63 0.8 8.23 0.71
2 7/2.48 7.44 0.8 9.04 0.56
1 7/2.78 8.34 1.2 10.74 0.4268
0 7/3.20 9.60 1.2 12.00 0.3367
2/0 7/3.57 10.71 1.2 13.11 0.267
3/0 7/3.94 11.82 1.2 14.22 0.2119
4/0 7/4.42 13.26 1.2 15.66 0.168
