ProductsFEP/PFA/ETFE/PTFE wires and cables

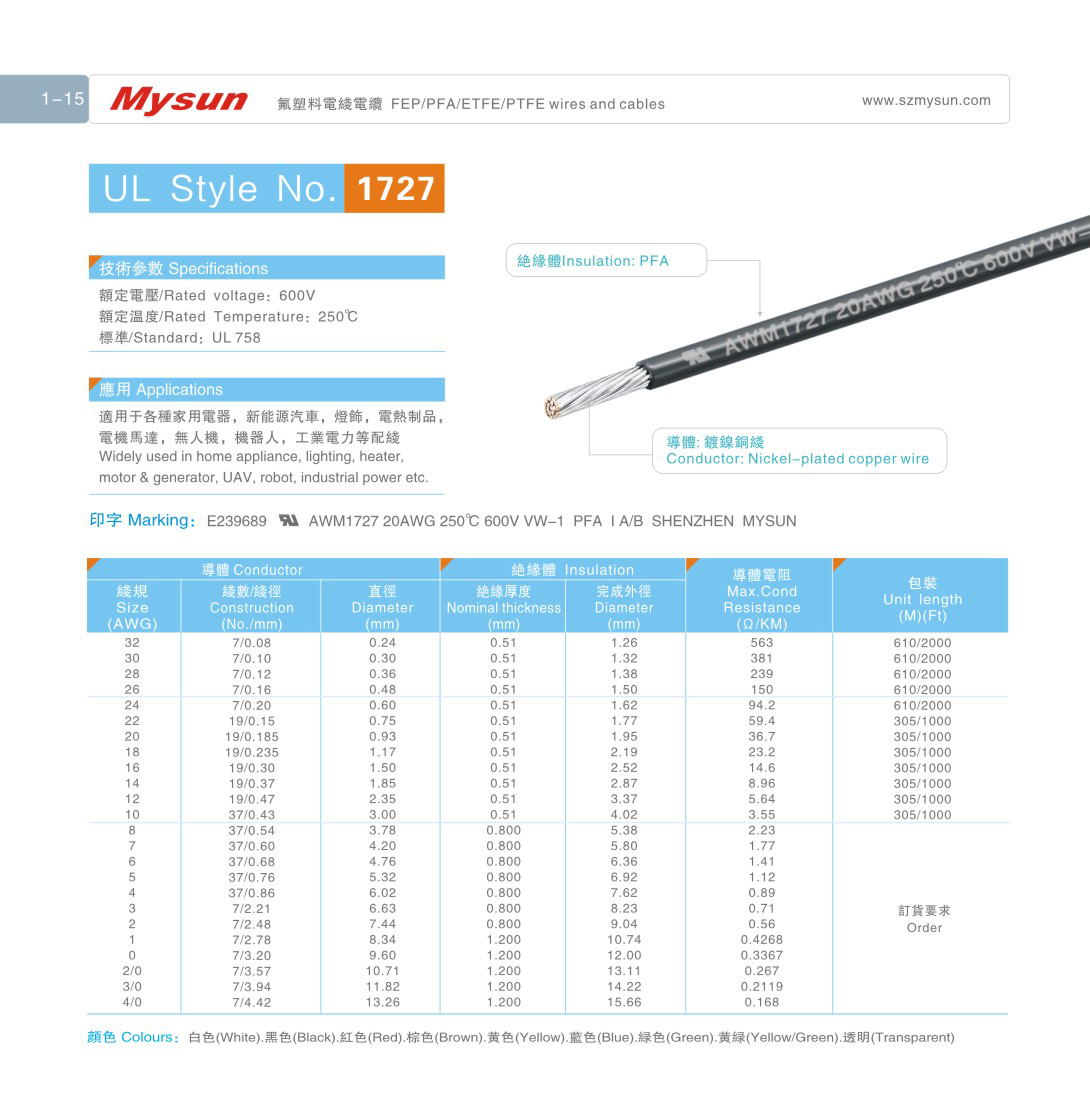

UL Style No.1727

Technical Parameter:

  • Rated voltage: 600V
  • Rated Temperature: 250℃
  • Standard: UL758
Product Description
Besides its excellent high and low temperature resistance, FEP/PFA/ETFE/PTFE wire also exhibits outstanding corrosion resistance, being nearly insoluble in any organic solvent. It can resist oils, strong acids, strong alkalis, strong oxidants, and more. With good insulation performance, high voltage, high frequency, low loss, moisture resistance, flame resistance, aging resistance, and long service life. Compared to silicone wires, FEP/PFA/ETFE/PTFE wire has a smoother and harder material that is less prone to wear and scratches. It finds widespread applications in fields such as chemical engineering, electronics, aerospace, and medical industries.
導體(Conductor) 絕緣體 Insulation 導體電阻
Max.Cond
Resistance
(Ω/KM)
包裝
Unit Length
(M)/(Ft)
線規
Size
(AWG)
線數/線徑
Construction
(No./mm)
直徑
Diameter
(mm)
絕緣厚度
Nominal Thickness
(mm)
完成外徑
Diameter
(mm)
32 7/0.08 0.24 0.51 1.26 563 610/2000
30 7/0.10 0.30 0.51 1.32 361
28 7/0.12 0.36 0.51 1.38 227
26 7/0.16 0.48 0.51 1.50 143
24 7/0.20 0.60 0.51 1.62 89.3
22 19/0.15 0.75 0.51 1.77 56.4 305/1000
20 19/0.185 0.93 0.51 1.95 35.2
18 19/0.235 1.17 0.51 2.19 22.2
16 19/0.30 1.50 0.51 2.52 14
14 19/0.37 1.85 0.51 2.87 8.78
12 19/0.47 2.35 0.51 2.37 5.53
10 37/0.43 3.00 0.51 4.02 3.476
8 37/0.54 3.78 0.80 5.38 2.16 依客戶要求
Customization
7 37/0.60 4.20 0.80 5.80 1.716
6 37/0.68 4.76 0.80 6.36 1.361
5 37/0.76 5.32 0.80 6.92 1.079
4 37/0.86 6.02 0.80 7.62 0.8859
3 7/2.21 6.63 0.80 8.23 0.6788
2 7/2.48 7.44 0.80 9.04 0.5384
1 7/2.78 8.34 1.20 10.74 0.4268
0 7/3.20 9.60 1.20 12.00 0.3367
2/0 7/3.57 10.71 1.20 13.11 0.267
3/0 7/3.94 11.82 1.20 14.22 0.2119
4/0 7/4.42 13.26 1.20 15.66 0.168


FAQ
How soon can I expect delivery?

For products in stock, we ship immediately. Otherwise, production typically takes 7-10 working days.

What is your MOQ?

MOQs vary by product. For wires and cables ranging from 28AWG to 18AWG, it's 6100 meters. For 16AWG to 12AWG, it's 3050 meters. Beyond 10AWG, the MOQ is 1000 meters.

What are your available transportation methods?

We offer transportation by sea, land, and air.

What payment methods do you accept?

We accept various payment methods. Our recommendations are 100% T/T or PayPal before production, or a 70% T/T deposit with the remaining 30% balance due before shipment.

How do you handle quality issues?

In case of any quality concerns, we will promptly resend fully-qualified products to you.
