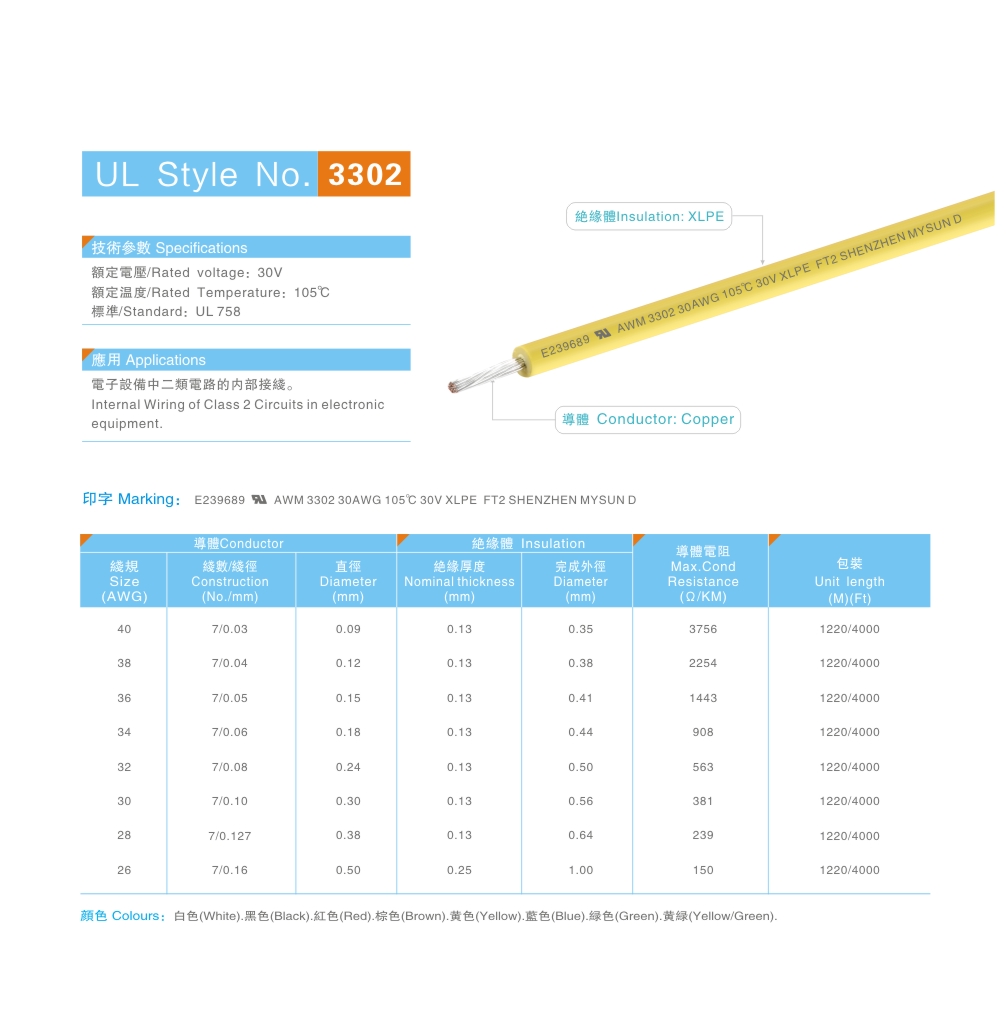

UL Style No.3302
Technical Parameter：
- Rated voltage: 30V
- Rated Temperature: 105℃
- Standard: UL758
Product Description
Cross-linked polyethylene (XLPE) wire has excellent heat resistance and electrical properties. Its heat resistance allows it to maintain stable performance in temperatures ranging from -40°C to +125°C, making it suitable for scenes like power transmission and equipment connections. Cross-linked polyethylene wire has good electrical insulation properties, effectively preventing current leakage and short circuits, thus finding wide applications in power systems, industrial equipment, and more.
| 導體(Conductor) | 絕緣體 Insulation | 护套Jacket(可选Optional） | 導體電阻 Max.Cond Resistance (Ω/KM) | 包裝 Unit Length (M)(Ft) | ||||
| 線規 Size (AWG) | 線數/線徑 Construction (No./mm) | 直徑 Diameter (mm) | 絕緣厚度 Nominal Thickness (mm) | 完成外徑 Diameter (mm) | 絕緣厚度 Nominal Thickness (mm) | 完成外徑 Diameter (mm) | ||
| 40 | 7/0.03 | 0.09 | 0.25 | 0.59 | 0.25 | 1.09 | 3756 | 1220/4000 |
| 38 | 7/0.04 | 0.12 | 0.25 | 0.62 | 0.25 | 1.12 | 2254 | 1220/4000 |
| 36 | 7/0.05 | 0.15 | 0.25 | 0.65 | 0.25 | 1.15 | 1443 | 1220/4000 |
| 34 | 7/0.06 | 0.18 | 0.25 | 0.68 | 0.25 | 1.18 | 908 | 1220/4000 |
| 32 | 7/0.08 | 0.24 | 0.25 | 0.74 | 0.25 | 1.24 | 563 | 1220/4000 |
| 30 | 7/0.10 | 0.30 | 0.25 | 0.80 | 0.25 | 1.30 | 381 | 1220/4000 |
| 28 | 7/0.127 | 0.38 | 0.25 | 0.88 | 0.25 | 1.38 | 239 | 1220/4000 |
| 26 | 7/0.16 | 0.50 | 0.25 | 1.00 | 0.25 | 1.50 | 150 | 1220/4000 |
| 24 | 7/0.2 | 0.60 | 0.25 | 1.10 | 0.25 | 1.60 | 94.2 | 610/2000 |
| 22 | 17/0.16 | 0.76 | 0.25 | 1.26 | 0.25 | 1.76 | 59.4 | 610/2000 |
| 20 | 21/0.18 | 0.94 | 0.30 | 1.54 | 0.30 | 2.14 | 36.7 | 610/2000 |
| 18 | 16/0.254 | 1.19 | 0.40 | 1.99 | 0.40 | 2.79 | 23.2 | 305/1000 |
| 16 | 26/0.254 | 1.50 | 0.40 | 2.30 | 0.40 | 3.10 | 14.6 | 305/1000 |
| 14 | 41/0.254 | 1.89 | 0.45 | 2.79 | 0.45 | 3.69 | 8.96 | 305/1000 |
| 12 | 65/0.254 | 2.37 | 0.55 | 3.47 | 0.55 | 4.57 | 5.64 | 305/1000 |
| 10 | 105/0.254 | 3.02 | 0.60 | 4.22 | 0.60 | 5.42 | 3.55 | 305/1000 |
| 9 | 131/0.254 | 3.36 | 0.78 | 4.92 | 0.78 | 6.48 | 2.813 | 305/1000 |
| 8 | 166/0.254 | 3.75 | 1.15 | 6.05 | 1.15 | 8.35 | 2.23 | 100/328 |
| 7 | 209/0.254 | 4.21 | 1.15 | 6.51 | 1.15 | 8.81 | 1.768 | 100/328 |
| 6 | 263/0.254 | 4.79 | 1.53 | 7.85 | 1.53 | 10.91 | 1.403 | 100/328 |
| 4 | 169/0.40 | 6.02 | 1.53 | 9.08 | 1.53 | 12.14 | 0.882 | 100/328 |
| 2 | 268/0.40 | 7.60 | 1.53 | 10.66 | 1.53 | 13.72 | 0.5548 | 100/328 |
| 1/0 | 426/0.40 | 10.8 | 2.10 | 15.00 | 2.10 | 19.20 | 0.3487 | 100/328 |
| 2/0 | 537/0.40 | 12.2 | 2.10 | 16.40 | 2.10 | 20.60 | 0.2766 | 100/328 |
| 3/0 | 677/0.40 | 13.7 | 2.10 | 17.90 | 2.10 | 22.10 | 0.2194 | 100/328 |
| 4/0 | 547/0.50 | 15.4 | 2.10 | 19.60 | 2.10 | 23.80 | 0.1722 | 100/328 |
