产品描述

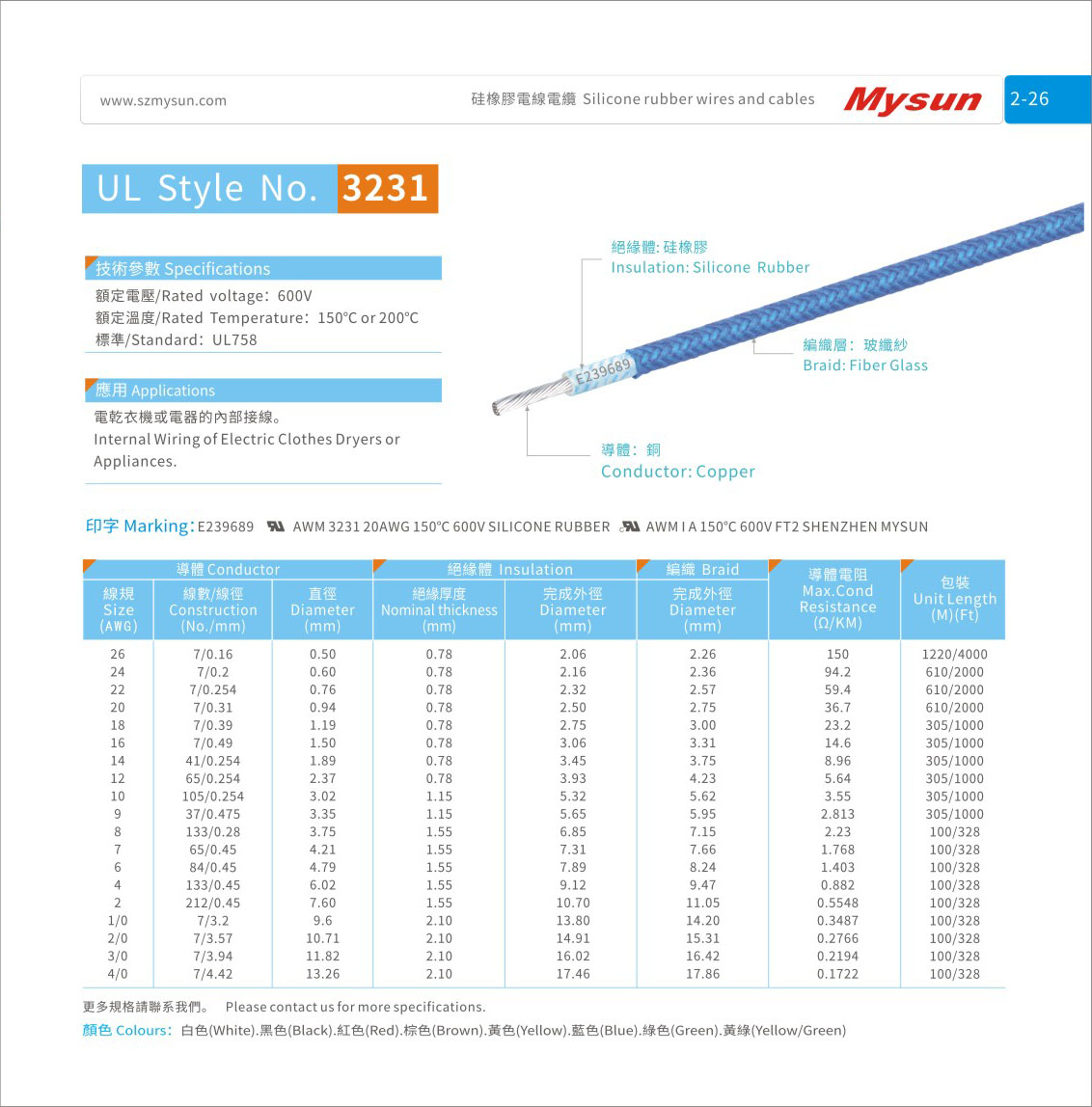

Silicone braided wire adds a braided outer layer to silicone wire, enhancing its tensile strength and mechanical performance. Its increased tensile strength makes it more suitable for environments that require higher strength and durability, such as industrial equipment and internal wiring of motors. At the same time, silicone braided wire retains the flexibility and abrasion resistance of silicone wire, enabling it to operate stably in complex environments for extended periods.
| 導體(Conductor) | 絕緣體 Insulation | 編織 Braid | 導體電阻 Max.Cond Resistance (Ω/KM) | 包裝 Unit Length (M)/(Ft) | |||
| 線規 Size (AWG) | 線數/線徑 Construction (No./mm) | 直徑 Diameter (mm) | 絕緣厚度 Nominal Thickness (mm) | 完成外徑 Diameter (mm) | 完成外徑 Diameter (mm) | ||
| 26 | 7/0.16 | 0.48 | 0.78 | 2.06 | 2.26 | 150 | 1220/4000 |
| 24 | 7/0.2 | 0.6 | 0.78 | 2.16 | 2.36 | 94.2 | 610/2000 |
| 22 | 7/0.254 | 0.76 | 0.78 | 2.32 | 2.57 | 59.4 | 610/2000 |
| 20 | 7/0.31 | 0.93 | 0.78 | 2.5 | 2.75 | 36.7 | 610/2000 |
| 18 | 7/0.39 | 1.17 | 0.78 | 2.75 | 3 | 23.2 | 305/1000 |
| 16 | 7/0.49 | 1.47 | 0.78 | 3.06 | 3.31 | 14.6 | 305/1000 |
| 14 | 41/0.254 | 1.89 | 0.78 | 3.45 | 3.75 | 8.96 | 305/1000 |
| 12 | 65/0.254 | 2.36 | 0.78 | 3.93 | 4.23 | 5.64 | 305/1000 |
| 10 | 105/0.254 | 3.02 | 1.15 | 5.32 | 5.62 | 3.55 | 305/1000 |
| 9 | 37/0.475 | 3.35 | 1.15 | 5.65 | 5.95 | 2.813 | 305/1000 |
| 8 | 133/0.28 | 3.75 | 1.15 | 6.85 | 7.15 | 2.23 | 100/328 |
| 7 | 65/0.45 | 4.21 | 1.15 | 7.31 | 7.66 | 1.768 | 100/328 |
| 6 | 84/0.45 | 4.79 | 1.15 | 7.89 | 8.24 | 1.403 | 100/328 |
| 4 | 133/0.45 | 6.02 | 1.15 | 9.12 | 9.47 | 0.882 | 100/328 |
| 2 | 212/0.45 | 7.60 | 1.15 | 10.7 | 11.05 | 0.5548 | 100/328 |
| 1/0 | 7/3.2 | 9.6 | 2.1 | 13.8 | 14.2 | 0.3487 | 100/328 |
| 2/0 | 7/3.57 | 10.71 | 2.1 | 14.91 | 15.31 | 0.2766 | 100/328 |
| 3/0 | 7/3.94 | 11.82 | 2.1 | 16.02 | 16.42 | 0.2194 | 100/328 |
| 4/0 | 7/4.42 | 13.26 | 2.1 | 17.46 | 17.86 | 0.1722 | 100/328 |
