Silicone wire is a type of wire that uses silicone as its insulation material. Its main feature is its excellent high temperature resistance, able to maintain stable performance in temperature ranges from -50°C to +200°C or even higher. Additionally, silicone wire possesses good resistance to chemical corrosion, able to withstand the corrosion of acids, alkalis, solvents, and other chemical substances. Its flexible and abrasion-resistant characteristics make it suitable for complex wiring environments. Silicone wire is widely used in household appliances, automotive electronics, medical devices, industrial equipment, aerospace, construction, drones, and other fields.

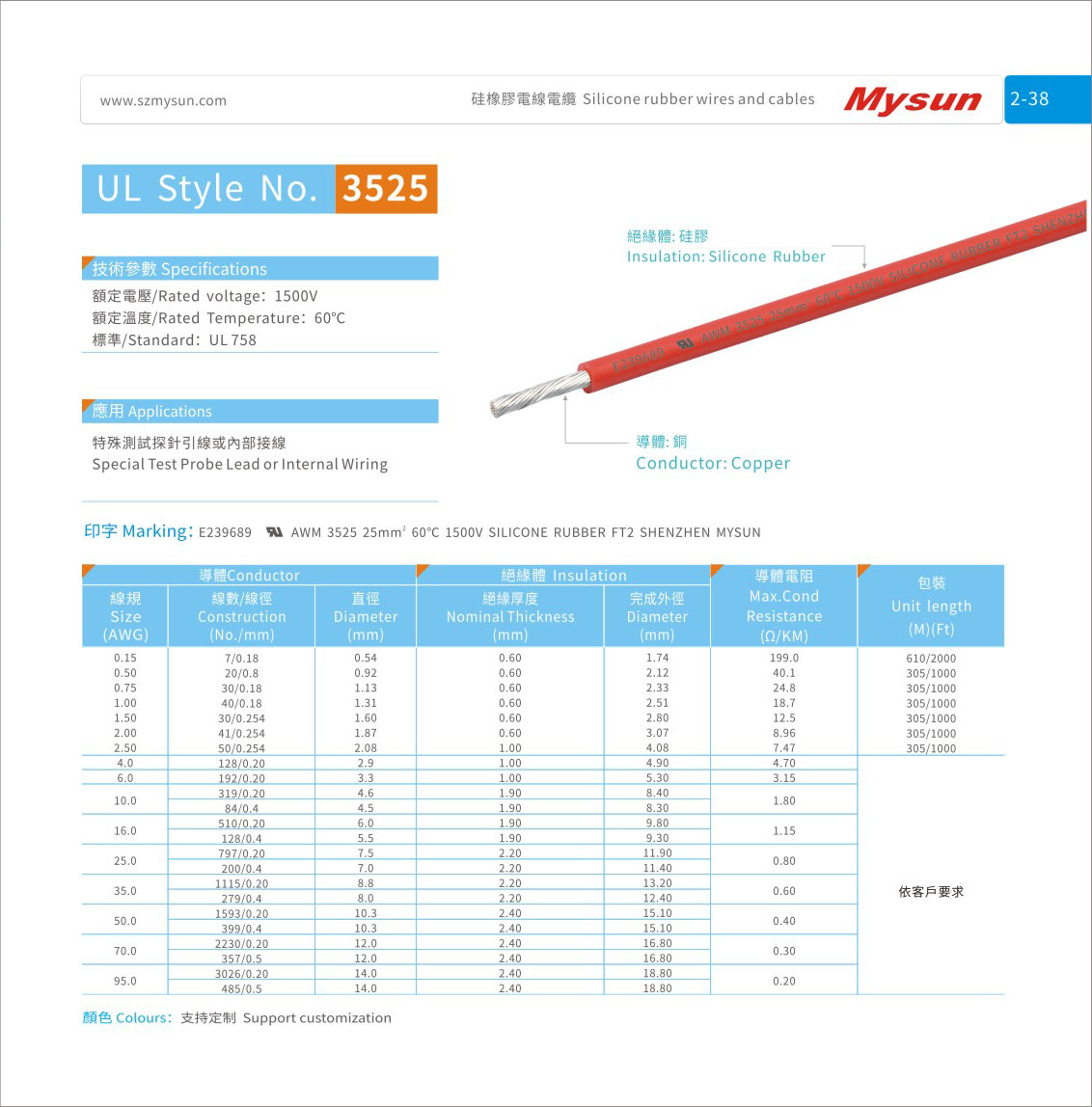

導體(Conductor) | 絕緣體 Insulation | 導體電阻 Max.Cond Resistance (Ω/KM) | 包裝 Unit Length (M)/(Ft) | |||
線規 Size (AWG) | 線數/線徑 Construction (No./mm) | 直徑 Diameter (mm) | 絕緣厚度 Nominal Thickness (mm) | 完成外徑 Diameter (mm) | ||
0.15 | 7/0.18 | 0.54 | 0.6 | 1.74 | 199 | 610/2000 |
0.5 | 20/0.8 | 0.92 | 0.6 | 2.12 | 40.1 | 305/1000 |
0.75 | 30/0.18 | 1.13 | 0.6 | 2 33 | 24.8 | 305/1000 |
1 | 40/0.18 | 1.31 | 0.6 | 2.51 | 18.7 | 305/1000 |
1.5 | 30/0.254 | 1.6 | 0.6 | 2.8 | 12.5 | 305/1000 |
2 | 41/0.254 | 1.87 | 0.6 | 3.07 | 8.96 | 305/1000 |
2.5 | 50/0.254 | 2.08 | 1 | 4.08 | 7.47 | 305/1000 |
4 | 128/0.20 | 2.9 | 1 | 4.9 | 4.7 | 客戶定制 Support customization |
6 | 192/0.20 | 3.3 | 1 | 5.3 | 3.15 | |
10 | 319/0.20 | 4.6 | 1.9 | 8.4 | 1.8 | |
84/0.4 | 4.5 | 1.9 | 8.3 | |||
16 | 510/0.20 | 6 | 1.9 | 9.8 | 1.15 | |
128/0.4 | 5.5 | 1.9 | 9.3 | |||
25 | 79710.2 | 7.5 | 2.2 | 11.9 | 0.8 | |
200/0.4 | 7 | 2.2 | 11.4 | |||
35 | 1115/0.20 | 8.8 | 2.2 | 13.2 | 0.6 | |
279/0.4 | 8 | 2.2 | 12.4 | |||
50 | 1593/0.20 | 10.3 | 2.4 | 15.1 | 0.4 | |
399/0.4 | 10.3 | 2.4 | 15.1 | |||
70 | 223010.2 | 12 | 2.4 | 16.8 | 0.3 | |
357/0.5 | 12 | 2.4 | 16.8 | |||
95 | 3026/0.20 | 14 | 2.4 | 18.8 | 0.2 | |
485/0.5 | 14 | 2.4 | 18.8 |
现货商品当天16点前下单,当天发货;备货商品七天内安排发货。默认发优速快递,如需其他快递公司发货请提前备注。
以下情况不支持退换货服务:
1、拍散线,在已剪情况下,不退换;未剪的散线可退换,需联系客服。2、线缆包装已拆封,如无因质量等问题不支持退换货,请悉知。3、商品有污损(如线缆包装表面有油漆、涂料等)4、线缆表面有损伤,影响二次销售的不支持退换货。
请直接联系我们。
